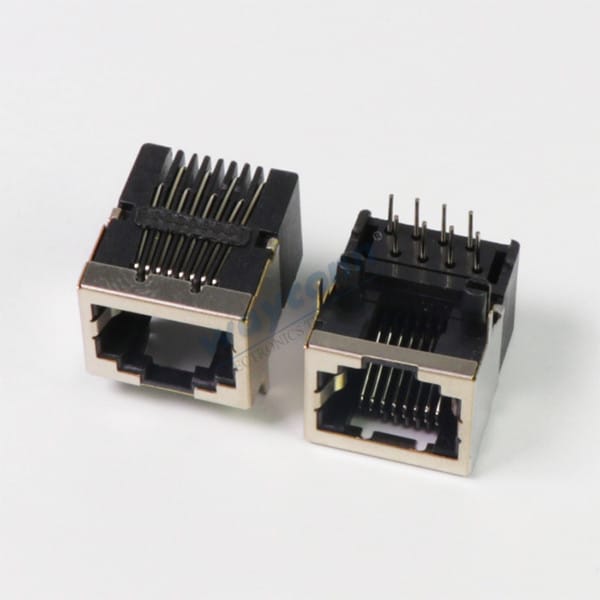

6018f47f5d50a372127c6cdc Single Port RJ45 Ethernet Jack RJ45 Connector with LED https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/60a7867e1a3ace1dde5faa3e/sheild-pcb-jack-rj45-with-led-connector-single-port-8p8c-socket-ec-1.jpg

RJ45 Jack [FeMale] Ethernet Port - Networking Ethernet (LED)

RJ45 Jack are used for standard networking cable. Suitable for making custom length networking cable.

Description

  • 10/100/1000Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LED
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5 & 6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:Yes
  • EMI finger:NO

Applications

  • Integrated RJ45 connector main used to :
    10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
    optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,
    telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
*Image shown is a representation only.
TT-ECK-4314
in stockINR 60.18
ELECTRON COMPONENT
1 1

Single Port RJ45 Ethernet Jack RJ45 Connector with LED

Sku: TT-ECK-4314
₹60.18


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

RJ45 Jack [FeMale] Ethernet Port - Networking Ethernet (LED)

RJ45 Jack are used for standard networking cable. Suitable for making custom length networking cable.

Description

  • 10/100/1000Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LED
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5 & 6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:Yes
  • EMI finger:NO

Applications

  • Integrated RJ45 connector main used to :
    10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
    optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,
    telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
*Image shown is a representation only.
