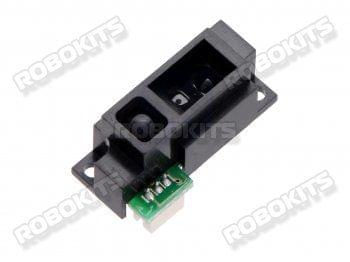

This sensor is the shortest-range Sharp analog distance sensor featuring a detection range of 0.8″ to 6″ (2 cm to 15 cm). The shorter range gives you higher resolution measurements, and the low minimum detection distance makes this sensor great for detecting very close objects. The distance is indicated by an analog voltage, making this sensor very easy to use.
Distance measuring range: 2 cm to 15 cm (0.8″ to 6″)
Output type: analog voltage
Output voltage differential over distance range: 1.65 V (typical)
Update period: 16.5 ± 4 ms
Maximum range: 15 cm
Minimum range: 2 cm
Sampling rate: 60 Hz
Minimum operating voltage: 4.5 V
Maximum operating voltage: 5.5 V
Supply current: 12 mA
Output voltage differential: 1.65 V
Dimension: 1.06″ × 0.52″ × 0.56″
Weight: 2.7 g
This sensor can be used with the robot to measure accurate accurate distace between 2 to 15 cm of range.
Shortest-range Sharp analog distance sensor
Distance measuring range: 2 cm to 15 cm
Higher resolution measurements
Output type: analog voltage
Operating voltage: 4.5 V - 5.5 V
VCC
GND
Output Signal
This sensor is the shortest-range Sharp analog distance sensor featuring a detection range of 0.8″ to 6″ (2 cm to 15 cm). The shorter range gives you higher resolution measurements, and the low minimum detection distance makes this sensor great for detecting very close objects. The distance is indicated by an analog voltage, making this sensor very easy to use.
Distance measuring range: 2 cm to 15 cm (0.8″ to 6″)
Output type: analog voltage
Output voltage differential over distance range: 1.65 V (typical)
Update period: 16.5 ± 4 ms
Maximum range: 15 cm
Minimum range: 2 cm
Sampling rate: 60 Hz
Minimum operating voltage: 4.5 V
Maximum operating voltage: 5.5 V
Supply current: 12 mA
Output voltage differential: 1.65 V
Dimension: 1.06″ × 0.52″ × 0.56″
Weight: 2.7 g
This sensor can be used with the robot to measure accurate accurate distace between 2 to 15 cm of range.
Shortest-range Sharp analog distance sensor
Distance measuring range: 2 cm to 15 cm
Higher resolution measurements
Output type: analog voltage
Operating voltage: 4.5 V - 5.5 V
VCC
GND
Output Signal
