ESP-01M can be widely used on various occasions for networking, home automation, industrial wireless control, baby monitors, wearable electronics, infinite position sensing device, wireless positioning systems, signal, and other networking applications, networking applications is the ideal solution.

ESP-01M uses the DIP plug-in package, the unique design so that it can be flexible docking to existing products, especially suitable for automation, large-scale, modern production of low cost, convenient application in various networking hardware terminal applications.

Features:

1. The smallest 802.11b/g/n Wi-Fi SoC module
2. Uses low power 32bit CPU and compatible with the application processor
3. Main frequency up to 160MHz
4. Built-in 10Bit high precision ADC
5. Support UART/GPIO/PWM/ADC interface
6. Integrate Wi-Fi MAC/BB/RF/PA/LNA
7. Support multiple sleep modes
8. Standby power consumption as low as 1.0mW
9. Embedded Lwip protocol stack
10. Support STA/AP/STA+AP work model
11. Support Smart Config/AirKiss
12. Series Rate up to 4Mbps
13. Universal AT instruction
14. Support serial local upgrade and remote firmware upgrade

Package Includes:

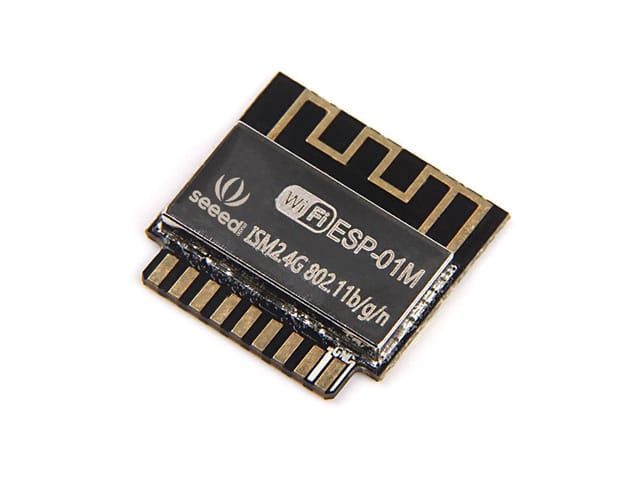

1 x Seeedstudio ESP8285 Wi-Fi SoC Module.
