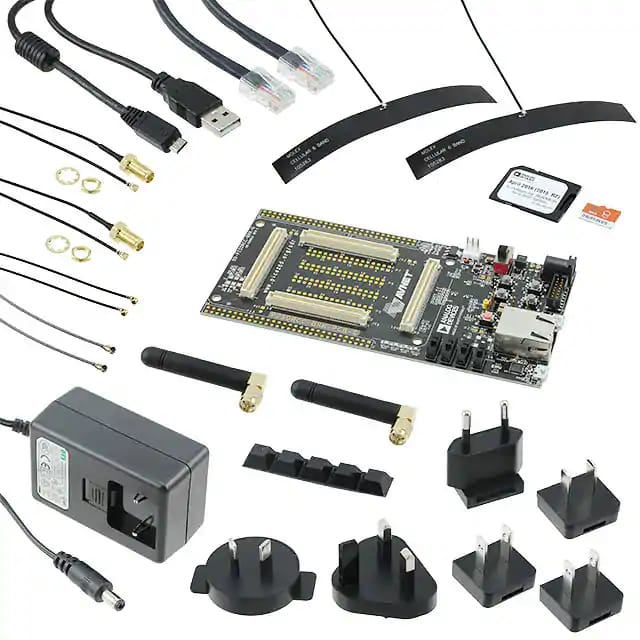

5ff6c63fed9f4888865622c2 SDR MODULE CARRIER/BREAK OUT BOA //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/5ff6c6346c2b0c3eb5fcebbe/webp/adrv1crr-bob_contents.webp

Description:

The ADRV1CRR-BOB is a simple prototyping platform for the SDR 1x1 and 2x2 SOMs, providing easy access to user I/O, Ethernet, USB, JTAG, and serial connections.
Four 100-pin Micro Headers on the carrier card mate with the SDR SOM, connecting the user I/O to 6 banks of 0.1” through-hole connector footprints. The Breakout Carrier generates the necessary power rails for the SDR SOM, providing 5V to the SOM plus user selectable bank voltages for the Xilinx Zynq Programmable Logic I/O. In addition, the carrier provides multiple access points to supply external I/O bank voltages and measure power consumption of the SOM.

Datasheets: SDR MODULE CARRIER/BREAK OUT BOAPdf

TT-ADRV1CRR-BOB-ND
in stock INR 31805.72
Analog Devices Inc.
1 1

SDR MODULE CARRIER/BREAK OUT BOA

Sku: TT-ADRV1CRR-BOB-ND
₹31,805.72


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

The ADRV1CRR-BOB is a simple prototyping platform for the SDR 1x1 and 2x2 SOMs, providing easy access to user I/O, Ethernet, USB, JTAG, and serial connections.
Four 100-pin Micro Headers on the carrier card mate with the SDR SOM, connecting the user I/O to 6 banks of 0.1” through-hole connector footprints. The Breakout Carrier generates the necessary power rails for the SDR SOM, providing 5V to the SOM plus user selectable bank voltages for the Xilinx Zynq Programmable Logic I/O. In addition, the carrier provides multiple access points to supply external I/O bank voltages and measure power consumption of the SOM.

Datasheets: SDR MODULE CARRIER/BREAK OUT BOAPdf
