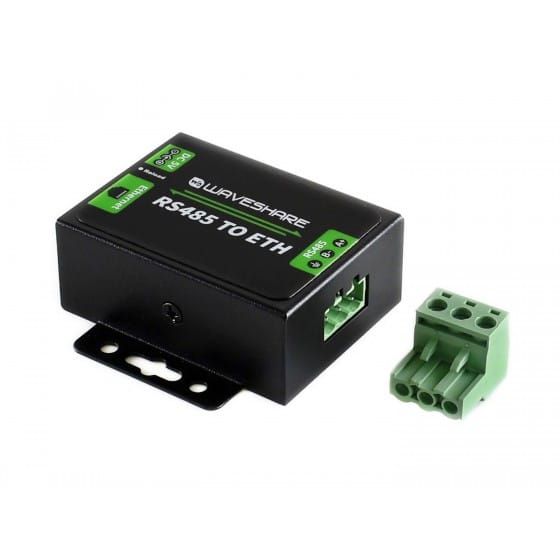

60125c6fd0318d2a5a62a613 RS485 to Ethernet Converter //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/60125b2ce6155b9e977faaed/webp/rs485-to-eth-3.jpg

Description:

The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet.

Features:

  • M0 series 32-bit ARM processor, fast speed, high efficiency
  • 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
  • Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
  • Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
  • Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
  • Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
  • Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
  • Supports customized webpage, allows user to customize the module configuration page
  • Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
  • KeepAlive mechanism, detects broken connection, auto re-connecting
  • Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
  • Supports DNS domain name resolution, configurable DNS server
  • Supports DHCP, auto-obtained IP or static IP
  • Firmware is upgradable via the network
  • Restore to factory settings via software and/or hardware
  • Comes with default MAC address, which is customizable
  • Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
  • Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications:

  • Ethernet:
    • Connector: 4-pin RJ45
    • Communication rate: 10/100Mbps
    • Interface protection: 1.5KV electromagnetic isolation
    • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
    • TX cache: 6Kbyte
    • RX cache: 4Kbyte
  • RS485:
    • Connector: screw terminal (A+, B-, GND)
    • Data bit: 5bit, 6bit, 7bit, 8bit
    • Stop bit: 1, 2
    • Parity bit: None, Odd, Even, Mark, Space
    • Baudrate: 600bps~230.4Kbps
    • RX cache: 800byte
    • Hardware flow control: none
    • Interface protection:
      • 2KV ESD protection
      • RS485 pull up/down registers: 2.2KΩ
  • Power:
    • Power supply: 5.0~7.0V (5V recommended)
    • Operating current: 150mA (@5V)
    • Power consumption: <1W
    • Interface protection: reverse-proof, ESD protection, anti-surge
  • Environment:
    • Operating temperature: -25~75°C
    • Storage temperature: -40~105°C

datasheet

TT-WVS-15731
in stockINR 3063.28
WAVESHARE
1 1
RS485 to Ethernet Converter

RS485 to Ethernet Converter

Sku: TT-WVS-15731
₹3,063.28


Sold By: tenettech
Features
  • 10-12 Working days
  • MOQ- 5 Nos

Description of product

Description:

The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet.

Features:

  • M0 series 32-bit ARM processor, fast speed, high efficiency
  • 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
  • Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
  • Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
  • Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
  • Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
  • Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished
  • Supports customized webpage, allows user to customize the module configuration page
  • Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change
  • KeepAlive mechanism, detects broken connection, auto re-connecting
  • Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time
  • Supports DNS domain name resolution, configurable DNS server
  • Supports DHCP, auto-obtained IP or static IP
  • Firmware is upgradable via the network
  • Restore to factory settings via software and/or hardware
  • Comes with default MAC address, which is customizable
  • Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
  • Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications:

  • Ethernet:
    • Connector: 4-pin RJ45
    • Communication rate: 10/100Mbps
    • Interface protection: 1.5KV electromagnetic isolation
    • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
    • TX cache: 6Kbyte
    • RX cache: 4Kbyte
  • RS485:
    • Connector: screw terminal (A+, B-, GND)
    • Data bit: 5bit, 6bit, 7bit, 8bit
    • Stop bit: 1, 2
    • Parity bit: None, Odd, Even, Mark, Space
    • Baudrate: 600bps~230.4Kbps
    • RX cache: 800byte
    • Hardware flow control: none
    • Interface protection:
      • 2KV ESD protection
      • RS485 pull up/down registers: 2.2KΩ
  • Power:
    • Power supply: 5.0~7.0V (5V recommended)
    • Operating current: 150mA (@5V)
    • Power consumption: <1W
    • Interface protection: reverse-proof, ESD protection, anti-surge
  • Environment:
    • Operating temperature: -25~75°C
    • Storage temperature: -40~105°C

datasheet
