5a9804d45709079a562d43b1 RS485 click 5V https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a9804d45709079a562d43b1/images/5a9804d45709079a562d43b2/5a980399d3fe869cf7c4347e/webp/5a980399d3fe869cf7c4347e.jpg

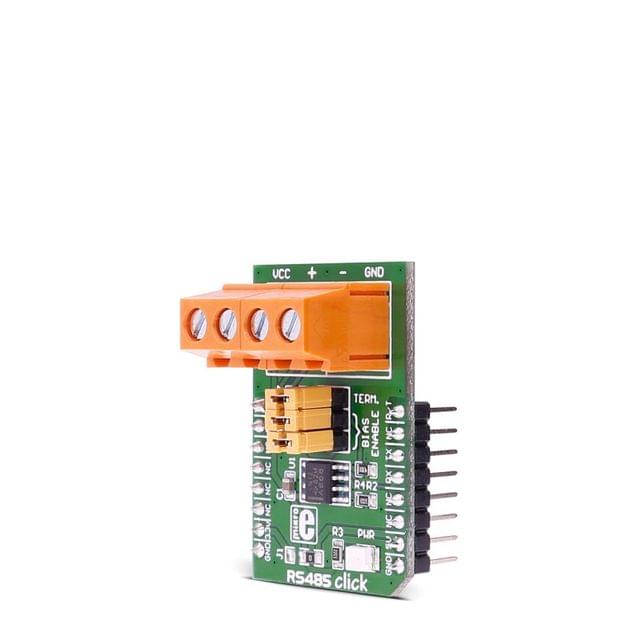

RS485 click 5V carries the ADM485 differential line transceiver from Analog Devices. It is designed for balanced data transmission and complies with EIA standards RS-485 and RS-422. The click is designed to run on a 5V power supply. RS485 5V click communicates with the target microcontroller over UART interface, with additional functionality provided by the PWM pin on the mikroBUS™ line.

ADM485 features

The ADM485 is a differential line transceiver suitable for high-speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422. The part contains a differential line driver and a differential line receiver. Both the driver and the receiver may be enabled independently. When disabled, the outputs are tri-stated.

Up to 32 transceivers may be connected simultaneously on a bus, but only one driver should be enabled at any time. It is important, therefore, that the remaining disabled drivers do not load the bus. To ensure this, the ADM485 driver features high output impedance when disabled and also when powered down.



Specifications

TypeRS485
ApplicationsBoard is suitable for Low power RS-485 systems, DTE/DCE interface Packet switching, Local area networks (LNAs), Data concentration, Data multiplexers, Integrated services digital network (ISDN) and more.
On-board modulesADM485 differential line transceiver
Key FeaturesMeets EIA RS-485 standard; 5 Mbps data rate; Short-circuit protection
Key BenefitsSuperior upgrade for LTC485
InterfaceUART,GPIO
Input Voltage5V,5V
CompatibilitymikroBUS
Click board sizeM (42.9 x 25.4 mm)
TT-MK-MIKROE-925
in stockINR 1827
Mikroelektronika
1 1
