5a98e03a81cd46c22b14535c RS232 click https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a98e03a81cd46c22b14535c/images/5a98e03a81cd46c22b14535d/5a98e02a81cd46c22b145335/5a98e02a81cd46c22b145335.jpg

Description

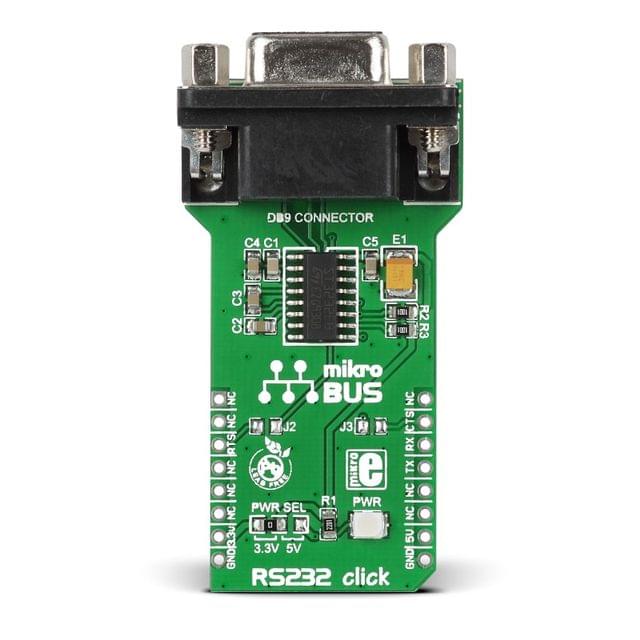

RS232 click is a simple solution for adding RS232 connectivity to your design. RS232 is a serial communications standard mostly used for industrial machines, networking equipment and scientific instruments, as well as for computer peripherals. The board features a standard RS232 DB9 port and a MAX3232 IC, along with a mikroBUS host socket, three jumpers and a power indicator LED. RS232 click communicates with the target board through mikroBUS™ RX (RXD), TX (TXD), CS (RTS), and INT (CTS) lines. RS232 click is designed to use either a 3.3V or 5V power supply.

RS232 click is a simple solution for interfacing any TTL serial port to the RS232 communications standard.

Specifications

Type RS232
Applications Simple solution for adding RS232 connectivity to your device
On-board modules RS232 DB9 port and a MAX3232 IC
Key Features Jumper positions for connecting RTS (J2) and CTS (J3) lines
Key Benefits Designed to use either a 5V or a 3.3V power supply
Interface GPIO,UART
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)
TT-Mk-MIKROE-1582
in stock INR
MIKROELECTRONICA
1 1
RS232 click

RS232 click

Sku: TT-Mk-MIKROE-1582
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a98e03a81cd46c22b14535c/images/5a98e03a81cd46c22b14535d/5a98e02a81cd46c22b145335/5a98e02a81cd46c22b145335.jpg

Description of product

Description

RS232 click is a simple solution for adding RS232 connectivity to your design. RS232 is a serial communications standard mostly used for industrial machines, networking equipment and scientific instruments, as well as for computer peripherals. The board features a standard RS232 DB9 port and a MAX3232 IC, along with a mikroBUS host socket, three jumpers and a power indicator LED. RS232 click communicates with the target board through mikroBUS™ RX (RXD), TX (TXD), CS (RTS), and INT (CTS) lines. RS232 click is designed to use either a 3.3V or 5V power supply.

RS232 click is a simple solution for interfacing any TTL serial port to the RS232 communications standard.

Specifications

Type RS232
Applications Simple solution for adding RS232 connectivity to your device
On-board modules RS232 DB9 port and a MAX3232 IC
Key Features Jumper positions for connecting RTS (J2) and CTS (J3) lines
Key Benefits Designed to use either a 5V or a 3.3V power supply
Interface GPIO,UART
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)
