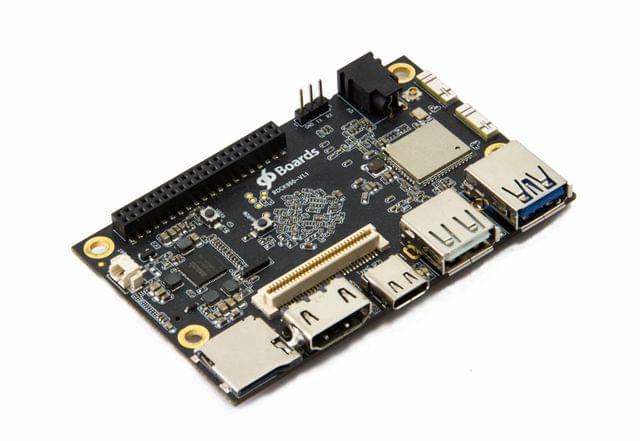

ROCK960 Board - RK3399 solution 2G Version

Description of product

Description

Vamrs is a 96boards contract Manufacturing Partner. ROCK960 is the first 96board based on Rockchip processor. Featuring RK3399 with Dual A72 plus Quad A53 cores and Mali T860MP4 makes it one of the most powerful 96boards

Features:

RK3399(A72x2+A53x4), 2G/16G, 4G/32G

Mali T860MP4, OpenGL 3.2, OpenCL 1.2

HDMI 2.0 4K@60

USB type C with DP 1.2 + USB 3.0

4 lanes PCIE 2.1

2x2 MIMO 802.11 AC Wi-Fi, BT 4.1

96boards Low speed/Hight speed expansion

Expansion:

1x 40 pin low speed expansion connector – UART, SPI, I2C, GPIO, I2S

1x 60 pin high speed expansion connector – MIPI DSI, USB, MIPI CSI, HSIC, SDIO

1x M.2 key M PCIe connector with support for up to 4-lane PCIe 2.1 (max bandwidth: 2.0 GB)

Misc – Power & u-boot buttons. 6 LEDS (4x user, 1x Wifi, 1x Bluetooth)

Power Supply – 8 to 18V DC input (12V typical) as per 96Boards CE specs; Battery header
