Description

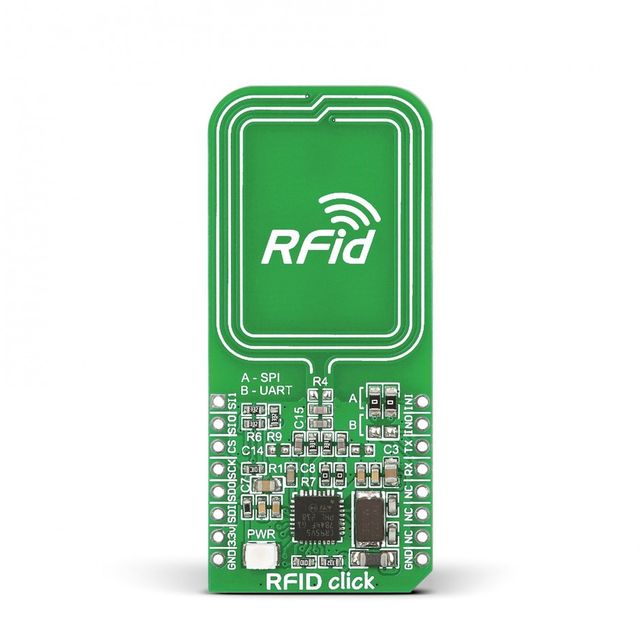

RFid click features CR95HF 13.56 MHz contactless transceiver as well as trace antenna. The click is designed to run on a 3.3V power supply only. It communicates with the target MCU via mikroBUS™ UART (TX, RX), SPI (MISO, MOSI, SCK, CS) INT, RST, PWM and AN lines. The click functions as an integrated transceiver for contactless applications. The board contains a dedicated internal frame controller and analog front end (AFE) for RF communications. It supports ISO/IEC 14443 type A and B, ISO/IEC 15693 and ISO/IEC 18092 protocols (tags) as well as the detection, reading and writing of NFC forum type 1, 2, 3 and 4 tags.
Key features
- CR95HF IC
- Operating modes supported: Reader/Writer
- RF communication @13.56 MHz
- Supports NFC Forum Type 1, 2, 3 and 4 tags
- 3.3V power supply
- Interface: UART, SPI
- Home
- RFid click
RFid click
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a2786c739f8ce03a3fdb9cc/images/5a2786c739f8ce03a3fdb9cd/5a2786b44279355924ea7458/5a2786b44279355924ea7458.jpg
Description of product
Description
RFid click features CR95HF 13.56 MHz contactless transceiver as well as trace antenna. The click is designed to run on a 3.3V power supply only. It communicates with the target MCU via mikroBUS™ UART (TX, RX), SPI (MISO, MOSI, SCK, CS) INT, RST, PWM and AN lines. The click functions as an integrated transceiver for contactless applications. The board contains a dedicated internal frame controller and analog front end (AFE) for RF communications. It supports ISO/IEC 14443 type A and B, ISO/IEC 15693 and ISO/IEC 18092 protocols (tags) as well as the detection, reading and writing of NFC forum type 1, 2, 3 and 4 tags.
Key features
- CR95HF IC
- Operating modes supported: Reader/Writer
- RF communication @13.56 MHz
- Supports NFC Forum Type 1, 2, 3 and 4 tags
- 3.3V power supply
- Interface: UART, SPI
