RF Explorer WSUB1G+
RF Explorer WSUB1G+

Description of product

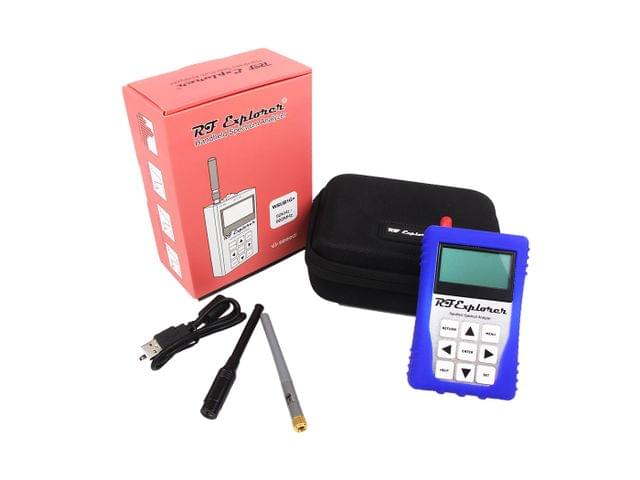

RF Explorer WSUB1G+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz. It is a very affordable solution replacing base model WSUB1G with additional features, capabilities and frequency coverage


•Internal LNA amplifier and selectable attenuator

•Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz

•New HELP and SET buttons to improve user interface and configuration selection with 2-clicks

•Ideal choice for HAM bands from 160meters to 33cm

•Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.

•Pocket size and light weight

•Solid aluminum metal case

•Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

•High capacity internal Lithium battery for 16hs+ of continuous run, rechargeable by USB

•Multi-platform Windows/Linux/MacOS Open Source software and API libraries

•Can be extended with internal Expansion Modules for additional band and functionality

For any technical support or suggestion, please kindly go to the official website
