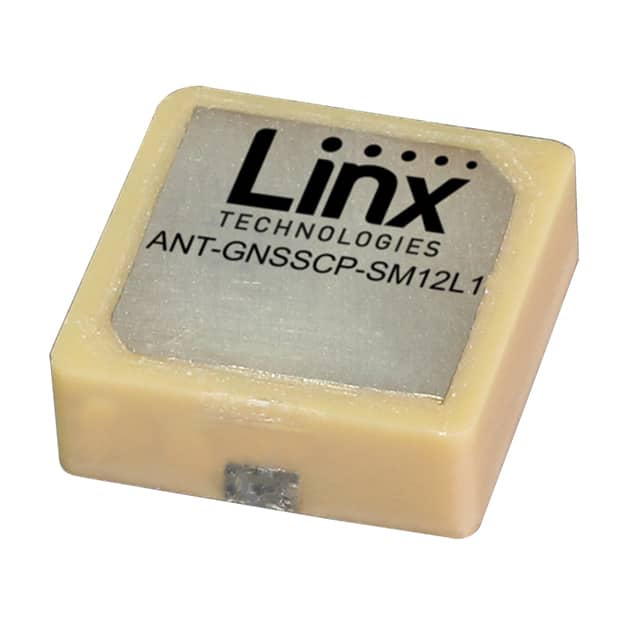

RF ANT GNSS PATCH L1 12X12 SMD
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6129fb2a839c9c6cea23a4d3/mfg_ant-gnsscp-sm12l1.jpg
RF ANT GNSS PATCH L1 12X12 SMD
Product Attributes:
| Series | GNSSCP |
| Part Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
| Frequency Range | 1.567GHz ~ 1.609GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 2 |
| VSWR | 7, 6.1 |
| Return Loss | -2.5dB, -2.9dB |
| Gain | 2.9dBi, 1dBi |
| Power - Max | 8 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.157" (4.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
* Image is only ment for representation
TT-DKEY-343-ANT-GNSSCP-SM12L1TR-ND
in stock
INR
Linx Technologies Inc.
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- RF AND WIRELESS
- RF ANT GNSS PATCH L1 12X12 SMD
RF ANT GNSS PATCH L1 12X12 SMD
Sku:
TT-DKEY-343-ANT-GNSSCP-SM12L1TR-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
RF ANT GNSS PATCH L1 12X12 SMD
Product Attributes:
| Series | GNSSCP |
| Part Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
| Frequency Range | 1.567GHz ~ 1.609GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 2 |
| VSWR | 7, 6.1 |
| Return Loss | -2.5dB, -2.9dB |
| Gain | 2.9dBi, 1dBi |
| Power - Max | 8 W |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.157" (4.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
* Image is only ment for representation
