Description

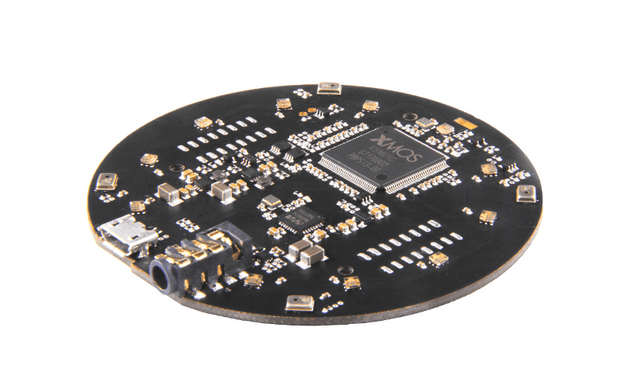

The ReSpeaker Mic Array v2.0 is a hardware-based solution for creating or adding voice-interface to your projects. The board is a far-field microphone array device capable of detecting voices up to 5m away even with the presence of background noise. The onboard hardware-enabled algorithms are powered by the XMOS XVF-3000.

Several improvements have been made since the original ReSpeaker Mic Array v1.0. The first thing you may notice is the reduction of microphones. With the improved performance of the XMOS XVF-3000, including the improved full duplex AEC, we’ve been able to deliver increased performance with fewer microphones, and thus a lower cost.

Technical specifications

XVF-3000 from XMOS

• 4 High Performance Digital Microphones

• Supports Far-field Voice Capture

• Speech Algorithms On-Chip

• 12 Programmable RGB LED Indicators

• Microphones: ST MP34DT01TR-M

• Sensitivity: -26 dBFS (Omnidirectional)

• Acoustic Overload Point: 120 dBSPL

• SNR: 63 dB

• Power Supply: 5V DC from Micro USB or Expansion Header

• Dimensions: 70mm (Diameter)

• 3.5mm Audio Jack Output Socket

Applications

• USB Voice Capture

• Smart Speaker

• Intelligent Voice Assistant Systems

• Voice Recorders

• Voice Conferencing System

• Meeting Communicating Equipment

• Voice Interacting Robot

• Car Voice Assistant

• Other Voice Interface Scenarios
