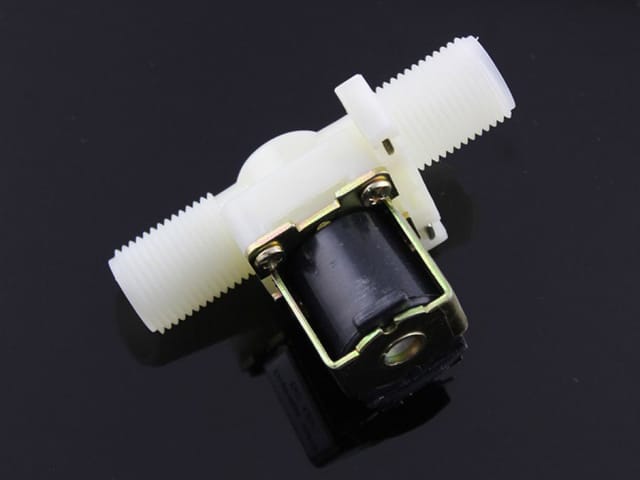

6173829a0838d0590ebf4e31 Plastic Water Solenoid Drainage Valve- 12V- 1/2" https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6173829478003d8396d140fa/webp/plastic-water-solenoid-drainage-valve-12v.jpg

Description:

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/2"(Nominal non-taped National Pipe) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, the liquid can only flow in one direction.

The "Drainage Valve" has working pressure 0 Mpa – 0.02 Mpa, used for Drainage.

Features:

  • 1/2" Nominal NPS
  • Material: Plastic
  • Working voltage: DC 12V
  • Working Pressure: 0 Mpa - 0.02 Mpa
  • Working Temperature: 1℃ - 75℃
  • Response time (open): ≤ 0.15 sec
  • Response time (close): ≤ 0.3 sec
  • Actuating life: ≥ 50 million cycles

Package List:

  • 1 x Plastic Water Solenoid Drainage Valve- 12V- 1/2"

TT-MF-MASO12PWS
in stockINR 380
Makerfabs
1 1
Plastic Water Solenoid Drainage Valve- 12V- 1/2"

Plastic Water Solenoid Drainage Valve- 12V- 1/2"

Sku: TT-MF-MASO12PWS
₹380


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/2"(Nominal non-taped National Pipe) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, the liquid can only flow in one direction.

The "Drainage Valve" has working pressure 0 Mpa – 0.02 Mpa, used for Drainage.

Features:

  • 1/2" Nominal NPS
  • Material: Plastic
  • Working voltage: DC 12V
  • Working Pressure: 0 Mpa - 0.02 Mpa
  • Working Temperature: 1℃ - 75℃
  • Response time (open): ≤ 0.15 sec
  • Response time (close): ≤ 0.3 sec
  • Actuating life: ≥ 50 million cycles

Package List:

  • 1 x Plastic Water Solenoid Drainage Valve- 12V- 1/2"
