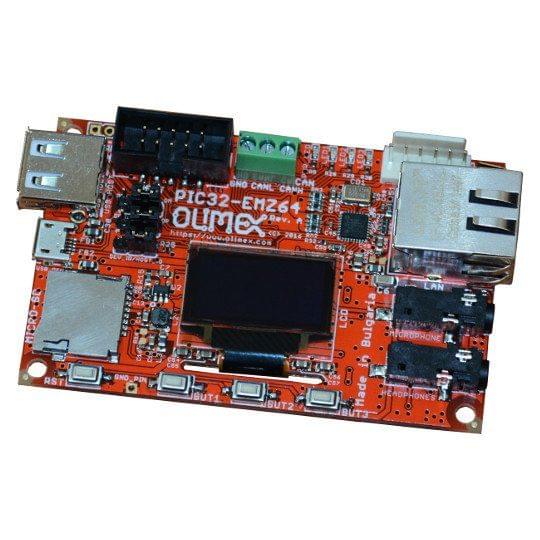

PIC32-EMZ64

Description of product

FEATURES

  • PIC32MZ2048EFH064-I/PT processor (2048KB flash; 512KB RAM)
  • LCD OLED display - 128x64 pixels
  • Ethernet interface 100Mb with connector
  • microSD card interace with connector
  • ICSP interface for debugging and programming
  • Two USB connectors - USB type A and micro USB (USB OTG or USB host modes)
  • Microphone jack (audio input interface)
  • Headphones jack (audio output interface)
  • CAN interface with driver and connector
  • UEXT expansion connector
  • Reset button
  • Three user-programmable buttons
  • Power-on LED
  • Three user-programmable LEDs
  • Power supply pads exposed
  • GND pin exposed
  • Mounting holes provided
  • Operating temperature range: (0 - 70)°C ~ (32 - 158)°F
  • PCB dimensions: (80 x 50)mm ~ (3.15 x 1.97)"
