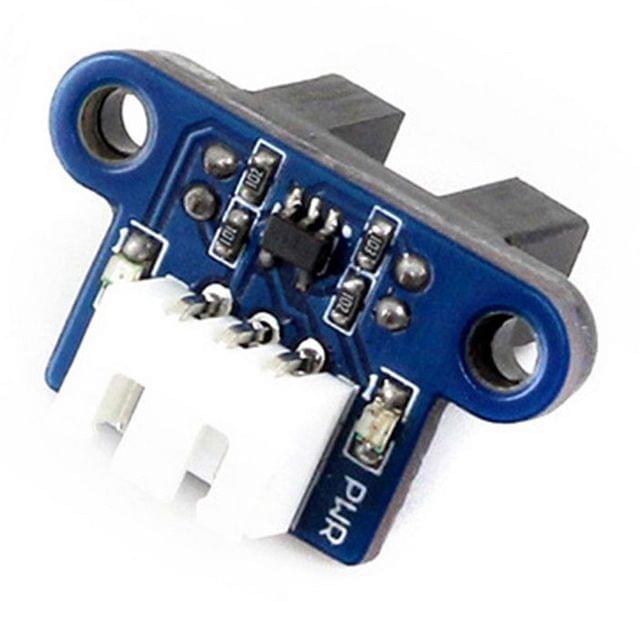

Photo Interrupter Sensor, Speed Measuring
https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b51d136d300520d285d43f5/images/5dd67ab63aef955d588b72cf/5dd67aaf08c11d5da8e33fda/5dd67aaf08c11d5da8e33fda.jpg
Description
- Infrared detection, eliminating the interferences of external stray light
- Schmitt trigger, stable wave form and signals
- Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
- Power: 3.3V ~ 5V
- Dimension: 26.8mm × 15mm × 18.7mm
- Mounting holes size: 3mm
- Gap width: 6mm
Applications
- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- DOUT ↔ MCU.IO (digital output)
Dimensions
in stock
INR
WAVESHARE
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- Photo Interrupter Sensor, Speed Measuring
Photo Interrupter Sensor, Speed Measuring
Sku:
TT-WS-12225
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b51d136d300520d285d43f5/images/5dd67ab63aef955d588b72ce/5dd67aab3aef955d588b70cb/5dd67aab3aef955d588b70cb.jpg
Description of product
Description
- Infrared detection, eliminating the interferences of external stray light
- Schmitt trigger, stable wave form and signals
- Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)
Specifications
- Power: 3.3V ~ 5V
- Dimension: 26.8mm × 15mm × 18.7mm
- Mounting holes size: 3mm
- Gap width: 6mm
Applications
- Motor speed detection
- Pulse counter
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- DOUT ↔ MCU.IO (digital output)
Dimensions
