Particle Photon Kit-Tiny Wi-Fi Development Kit for IoT Project,Open Source Design
SHOP FOR
Particle Photon Kit-Tiny Wi-Fi Development Kit for IoT Project,Open Source Design

Description of product

Description

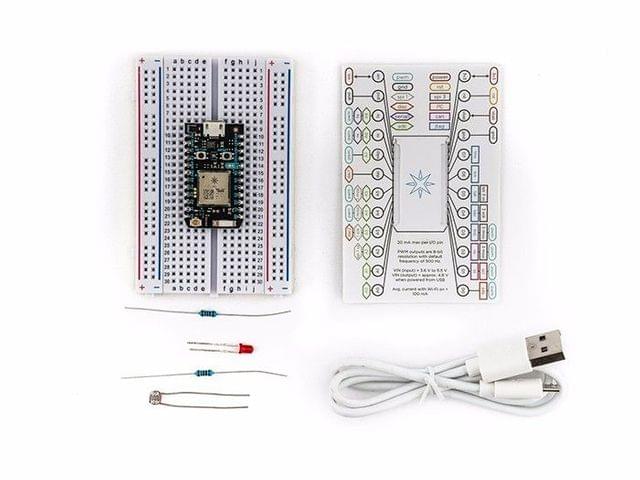

The Photon Kit includes a Photon with headers, a shiny white mini-breadboard, a USB-micro cable, and a couple of extra surprises to help you start building right away.

Your Photon comes with access to the Particle Cloud, our fully-featured cloud service. The Particle Cloud has some great features for building connected projects, including over-the-air firmware updates, an easy-to-use REST API, and firmware development supported by web and local IDEs.

Specifications:

  • Single band 2.4GHz IEEE 802.11b/g/n

  • Supports wireless data rates of up to 65Mbit/s

  • Supports Open, WEP, WAPI, WPA and WPA2-PSK WiFi security modes

  • Supports WiFi channels 1 to 14

  • Low power sleep, stand-by and stop modes

All Particle Hardware is designed from the ground up to work with the Device Cloud.The Device Cloud is a powerful set of tools and infrastructure to build, connect, and manage your IoT fleet.

Device Cloud Features:

  • Device Management

  • Over the Air Firmware Updates

  • Fully Managed Connectivity

  • Developer Tools

  • Integrations

Technical details

Dimensions36.58mm x20.32mm x6.86mm
WeightG.W 91g
BatteryExclude

Part List

Photon1
White Breadboard1
USB Micro B Cable1
Photo Resistor1
Red LED - 3mm1
Resistor - 220-Ohm 5% ¼ Watt2
