5d70d8a83693a42bbebbd0d4 Open18F4520 Standard, PIC Development Board https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70d8a83693a42bbebbd0d4/images/5d70d8a83693a42bbebbd0d5/5d70d88136c33c2c43029982/5d70d88136c33c2c43029982.jpg

Description

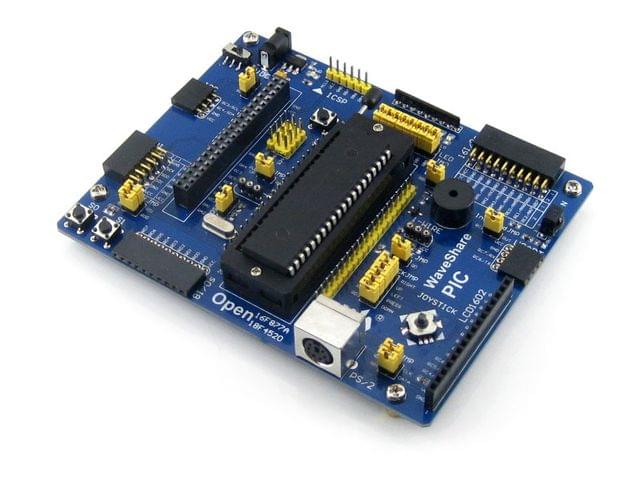

Open18F4520 is a PIC development board that features a PIC18F4520 device as the microcontroller. It supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with PIC microcontroller.

Features

Open18F4520 development board on board resource

  1. PIC18F4520-I/P:the high performance PIC MCU which features:
    • Core: PIC 8-bit RISC
    • Operating Frequency: 40MHz Max
    • Operating Voltage: 2-5.5V
    • Package: DIP40
    • I/Os: 36
    • Memories: 32kB Flash, 1536B RAM, 256B EEPROM
    • Communication Interfaces: 1 x MSSP(SPI/I2C), 1 x A/E/UART, 2 x PWM, 8 x ADC
    • Debugging/Programming: ICSP interfaces
  2. AMS1117-3.3: 3.3V voltage regulator
  3. Power switch
  4. Power indicator
  5. LEDs: convenient for indicating I/O status and/or program running state
  6. User keys: for I/O input test and/or program control
  7. Joystick: five positions
  8. Reset button
  9. Buzzer
  10. Infrared receiver
  11. 4M crystal oscillator
  12. 16 I/Os interface | 8-bit AD interface
    • for connecting accessory boards which using I/O control, such as FT245 USB FIFO, 8 SEG LED, etc.
    • there's also 8-bit AD interface can be used for AD testing
  13. 8 I/Os interface: for connecting accessory boards which using I/O control, such as 8 Push Buttons, Motor, etc.
  14. SPI interface: for connecting SPI peripherals, such as DataFlash (AT45DBxx), SD card, MP3, etc.
  15. I2C interface: for connecting I2C peripherals, such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc.
  16. 1-WIRE interface: for connecting 1-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  17. UART interface: for connecting UART peripherals, such as RS232, RS485, USB TO UART, etc.
  18. PS/2 interface: for connecting PS/2 keyboard and/or mouse
  19. Graphic multi-color LCD interface: for connecting 2.2 inch multi-color touch screen LCD which using SPI control
  20. Character LCD interface: for connecting character LCD, such as LCD1602 (3.3V blue backlight)
  21. 5V DC jack
  22. Custom crystal socket
  23. VCC power input/output: usually used for power supply output, and/or common ground with other application board
  24. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion
  25. ICSP interface: for debugging/programming
  26. LEDs jumper
  27. User keys jumper
  28. Joystick jumper
  29. PS/2 jumper
  30. 1-WIRE jumper
  31. Buzzer jumper
  32. IR jumper
  33. VCC selection jumper
  34. Crystal selection jumper
  35. RA4 pull-up jumper
