nRF S click
nRF S click

Description of product

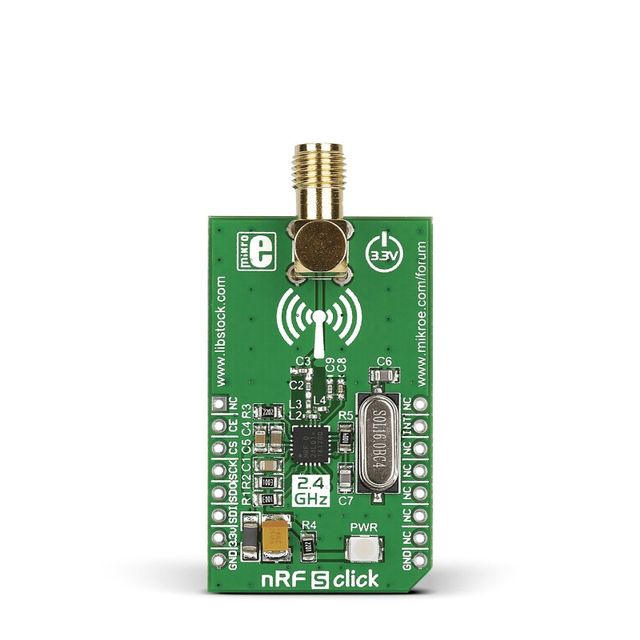

nRF S click is a compact and easy solution for adding a 2.4 GHz transceiver to your design. It features nRF24L01P 2.4 GHz transceiver module with an embedded baseband protocol engine as well as an SMA antenna connector (antenna sold separately). The board supports an air data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs. Typical applications include wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc. nRF S click communicates with target board microcontroller via mikroBUS SPI (SDI, SDO, SCK, CS#), CE and INT lines. The board is designed to use a 3.3V power supply only.

SPECIFICATION


Type RF 2.4GHz
Applications Wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc.
On-board modules nRF24L01P 2.4 GHz transceiver
Key Features SMA antenna connector
Key Benefits Supports data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs
Interface GPIO,SPI
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
