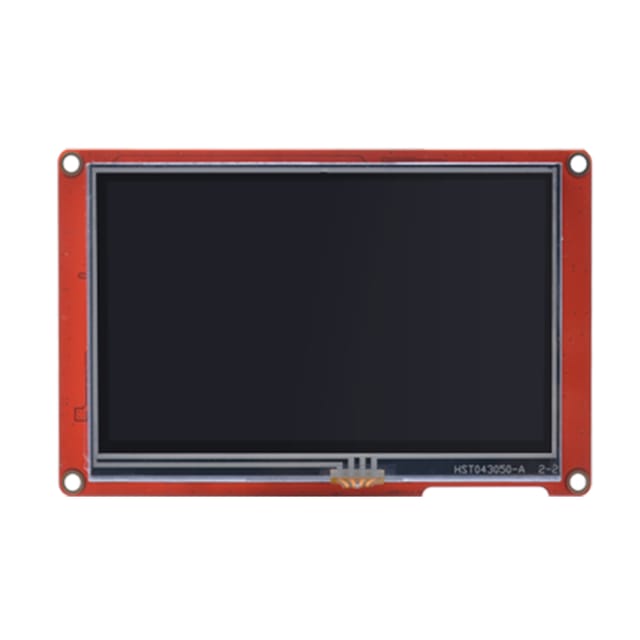

Nextion NX4827P043-011R is a 4.3″ Intelligent series SMART HMI Touch display having a resistive touch screen. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.

The Nextion Intelligent NX4827P043-011R 4.3″ Resistive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Features:

1. 4.3” LCD-TFT HMI display module
2. 480 x 272 screen resolution
3. RGB 65K true-to-life colors
4. Resistive touch panel
5. 300 nit Brightness
6. Onboard 200MHz MCU
7. 512 KB of SRAM
8. 128 MB of Flash memory

Package Includes:

1 x Nextion Intelligent NX4827P043_011R 4.3″ HMI Resistive Touch Display
