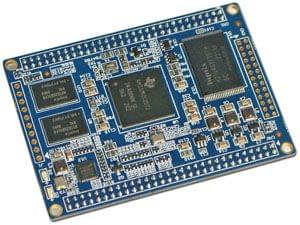

5b98f656dc7b1260582ac815 MYC-AM3352 CPU Module (industrial, 512MB DDR3, 512MB Flash) https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98f656dc7b1260582ac815/images/5b98f656dc7b1260582ac816/5b98f62b39afc1c3075daf77/webp/5b98f62b39afc1c3075daf77.jpg

MYC-AM335X CPU Module |TI AM3352, AM3359, ARM Cortex-A8, AM335x SOM, Linux, Android, WinCE-Welcome to MYIR.The MYC-AM335X CPU Module has integrated the AM335x processor, 512MB DDR3 SDRAM, 512MB Nand Flash and Gigabit Ethernet PHY chip on board and can be served as the core of your embedded system. It has two 2.0mm pitch 60-pin male expansion connectors for interconnecting with your base board, thus providing an interface for the base board to carry most of the I/O signals to and from the CPU module. One 2.0mm pitch 26-pin interface and one 2.54mm pitch 10-pin interface are also designed with only reserved solder joints which have extended a few signals for some special purpose.

The MYC-AM335X is the core of the MYD-AM335X development board which is a full-featured evaluation platform for users developing applications with Linux, Android and WinCE. Many peripheral interfaces such as two serial ports, four USB Host ports, one USB OTG port, dual Gigabit Ethernet ports, one CAN, one RS485, one Micro SD, HDMI, LCD, Touch screen have been carried out by headers and connectors on the base board. It can work in harsh environment supporting -40 to +85 Celsius extended temperature operation and make it ideal for industrial embedded applications such as automotive, control systems, lighting, refining and processing.

MYC-CAM3352-512N512D-80-I
in stockINR 9780
1 1
XYZ Blog title
ABC Blog title here
MYC-AM3352 CPU Module  (industrial, 512MB DDR3, 512MB Flash)

Description of product

MYC-AM335X CPU Module |TI AM3352, AM3359, ARM Cortex-A8, AM335x SOM, Linux, Android, WinCE-Welcome to MYIR.The MYC-AM335X CPU Module has integrated the AM335x processor, 512MB DDR3 SDRAM, 512MB Nand Flash and Gigabit Ethernet PHY chip on board and can be served as the core of your embedded system. It has two 2.0mm pitch 60-pin male expansion connectors for interconnecting with your base board, thus providing an interface for the base board to carry most of the I/O signals to and from the CPU module. One 2.0mm pitch 26-pin interface and one 2.54mm pitch 10-pin interface are also designed with only reserved solder joints which have extended a few signals for some special purpose.

The MYC-AM335X is the core of the MYD-AM335X development board which is a full-featured evaluation platform for users developing applications with Linux, Android and WinCE. Many peripheral interfaces such as two serial ports, four USB Host ports, one USB OTG port, dual Gigabit Ethernet ports, one CAN, one RS485, one Micro SD, HDMI, LCD, Touch screen have been carried out by headers and connectors on the base board. It can work in harsh environment supporting -40 to +85 Celsius extended temperature operation and make it ideal for industrial embedded applications such as automotive, control systems, lighting, refining and processing.
