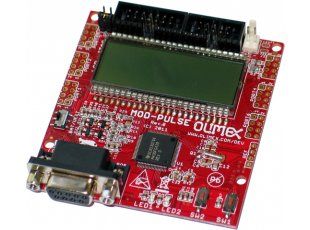

MOD-PULSE
MOD-PULSE

Description of product

FEATURES

  • MSP430FG439 microcontroller
  • LCD display
  • UEXT connector so it can be connected to other boards as heart beat monitor sensor board
  • 3V lithium battery onboard connector
  • Based on Texas Instruments application note SLAA274a
  • JTAG connector for direct plug in MSP430 2x7 JTAG connector to provide power for the target board
  • PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • Dimensions: 76.2x71.12 mm (3x2.8")
