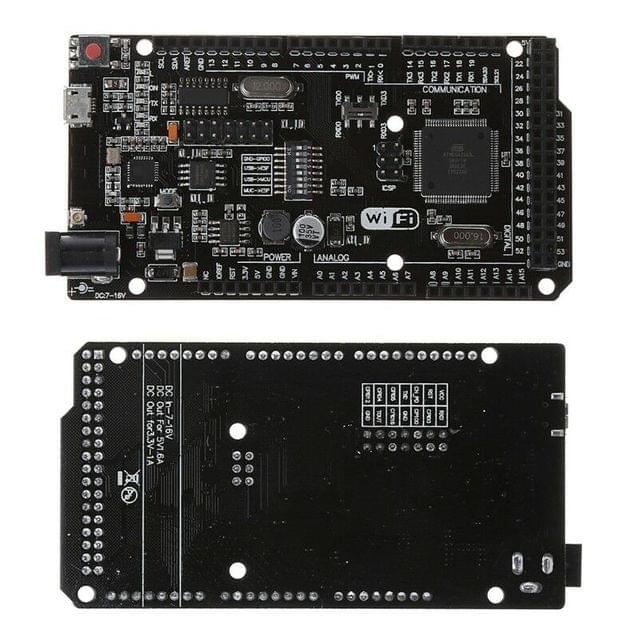

5df877656da1c921eebea28e Mega WiFi Dev. Board (Mega2560 + ESP8266 + CH340G + Micro USB) https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5df877656da1c921eebea28e/images/5df877656da1c921eebea28f/5df877554a2ee2773aca1e41/webp/5df877554a2ee2773aca1e41.jpg

It is a customized version of the classic ARDUINO MEGA R3 board. Full integration of Atmel ATmega2560 microcontroller and ESP8266 Wi-Fi IC, with 32 Mb (megabits) of flash memory, and CH340G USB-TTL converter on a single board. All components can be set up to work together or independently.All of the modules can work together or separately. And everyone has their own pinout headers. The convenient solution for the development of new projects requiring Uno and WiFi. Via USB you can update sketches and firmware for ATmega328 and for ESP8266.
For this onboard have the USB-serial converter CH340G.The board has DIP-switch to connect the modules. For example, to USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.The operating mode is selected by means of DIP switches on-board.

Specifications

  • Microcontroller: ATmega2560
  • IC: Wi-Fi - ESP8266
  • USB-TTL converter: CH340G
  • Power Out: 5V 800mA
  • Power Input: USB - 5V (500mA max.)
  • Power Input: VIN/DC Jack: 9-24V
  • Power Consumption: 5V 800mA
  • Logic Level: 5V
  • Wi-Fi 802.11 b/g/n 2.4 GHz
  • USB: Micro USB
  • Clock Frequency: 16MHz
  • Operating Supply Voltage: 5V
  • Digital I/O: 54
  • Analog I/O: 16
  • Memory Size: 256kb
  • Data RAM Type/Size: 8Kb
  • Data ROM Type/Size: 4Kb
  • Interface Type: SerialOTA
  • Operating temperature: −40С°/+125С°
  • Buil-in external antenna
  • 1x Mega WiFi Dev Board (Mega2560 + ESP8266 + CH340G + MicroUSB)
TT-RDK-3315
in stockINR 1733
