The MCP604-I/P is a low-power Operational Amplifier offered in quad (MCP604) configurations. The op-amp utilizes an advanced CMOS technology that provides low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. The product offering operates with a single supply voltage that can be as low as 2.7V while drawing 230μA (typical) of quiescent current per amplifier. In addition, the common mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation. The device is appropriate for low-power, battery-operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth, or for anti-aliasing filters by virtue of their low input bias current.

Applications:

1. Portable Equipment
2. A/D Converter Driver
3. Photo Diode Pre-amp
4. Analog Filters
5. Data Acquisition
6. Notebooks and PDAs
7. Sensor Interface

Features:

1. Single-Supply: 2.7V to 6.0V
2. Rail-to-Rail Output
3. Input Range Includes Ground
4. Gain Bandwidth Product: 2.8 MHz (typical)
5. Unity-Gain Stable
6. Low Quiescent Current: 230 µA/amplifier (typical)
7. Chip Select (CS): MCP603 only
8. Available in Single, Dual, and Quad

Package Includes:

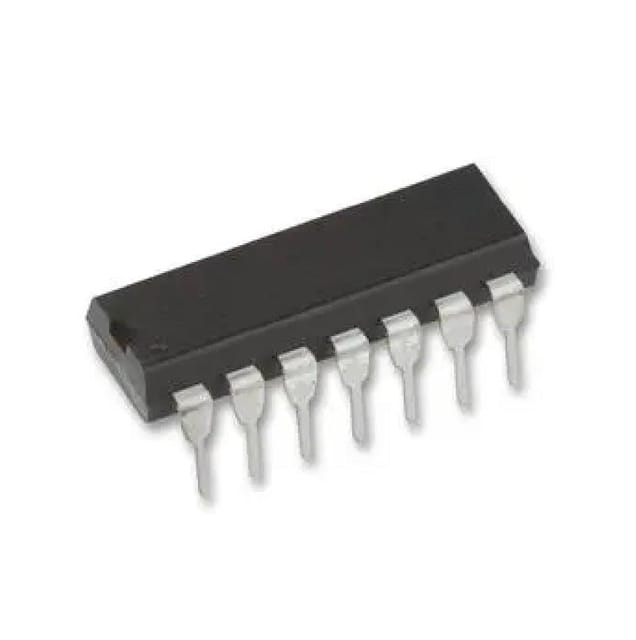

1 x MCP604-I/P-MICROCHIP-Operational Amplifier, Quad, 4 Amplifier, 2.8 MHz, 2.3 V/µs, 2.7V to 5.5V, DIP, 14 Pins
