The MCP4821-E/P is a 12-bit 1-channel 12-bit Digital-to-Analogue Converter with internal voltage reference. This device offers high accuracy and low power consumption. Communication with the device is accomplished via a simple serial interface using SPI protocols. This device provides very high accuracy and low noise performance and is suitable for applications, such as set point control, offset adjustment, and sensor calibration applications.

Applications:

Power Management, Communications & Networking, Consumer Electronics, Industrial, Sensing & Instrumentation, Portable Devices, Automotive

Note: For more technical details go through Datasheet in the attachment section.

Features:

1. Single-channel voltage output
2. 330µA (typical) Operating current
3. 2.048V Internal voltage reference
4. Selectable unity or 2x gain output
5. INL ±2 LSB (typical)
6. DNL ±0.75 LSB Maximum
7. 4.5µs Output settling time
8. SPI interface
9. Rail-to-rail output
10. Simultaneous latching of the DAC output with LDAC pin
11. 50ppm/°C VREF Temperature coefficient

Package Includes:

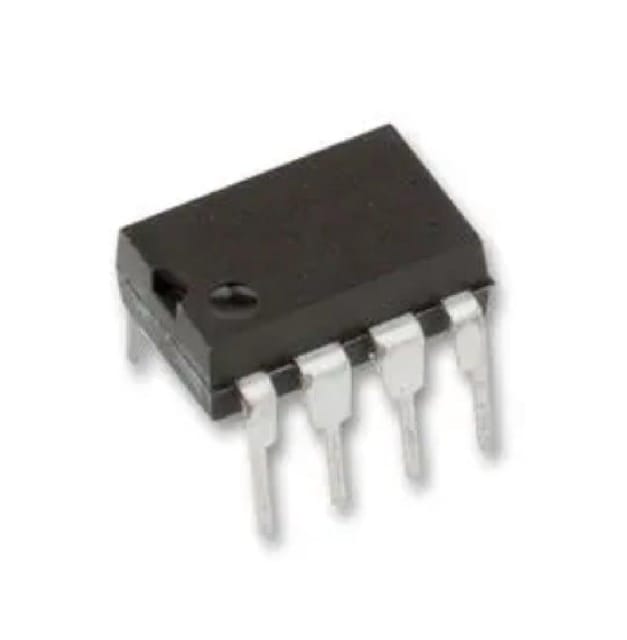

1 x MCP4821-E/P MICROCHIP Digital to Analogue Converter, 12 bit, 3 Wire, Serial, 2.7V to 5.5V, DIP, 8 Pins
