MAX6301ESA+T-ANALOG DEVICES-MPU Supervisor, 1.2V-5.5V supply, Active-Low, Open-Drain reset, 4 ms delay/1.24V threshold, NSOIC-8.The MAX6301ESA+T is a +5V, low power microprocessor (μP) supervisory circuit with adjustable reset/watchdog in 8 pin NSOIC package. This supervisory circuit provides maximum adjustability for reset and watchdog functions. The reset threshold can be adjusted to any voltage above 1.22V using external resistors. In addition, the reset and watchdog timeout periods are adjustable using external capacitors. A watchdog select pin extends watchdog timeout period to 500x. The reset function has immunity to power supply transients. The MAX6301 is used in intelligent instruments, battery powered computers/controllers, embedded controllers and critical μP monitoring applications.

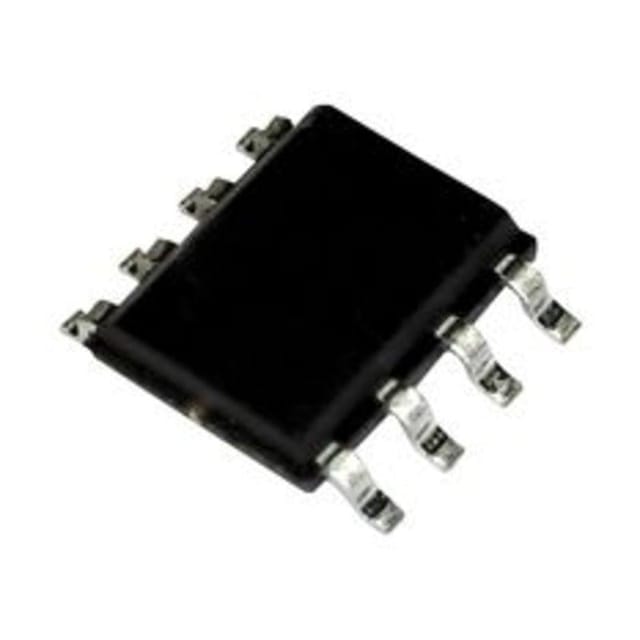

Note: Images for reference only.

Specifications:

Reset Threshold Voltage – Min:: –
Reset Threshold Voltage – Nom:: 1.22V
No. of Monitored Voltages:: 1Monitors
Supply Voltage Min:: 1.2V
Supply Voltage Max:: 5.5V
Reset Output Type:: Active-Low, Open-Drain
IC Case / Package:: NSOIC
No. of Pins:: 8Pins
IC Mounting:: Surface Mount
Delay Time:: 4ms
Operating Temperature Min:: -40°C
Operating Temperature Max:: 85°C
Product Range:: Multicomp Pro RJ45 Adapter
Qualification:: –
MSL:: MSL 1 – Unlimited

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MAX6301ESA+T-ANALOG DEVICES-MPU Supervisor, 1.2V-5.5V supply, Active-Low, Open-Drain reset, 4 ms delay/1.24V threshold, NSOIC-8
