Matrix-513
Matrix-513

Description of product

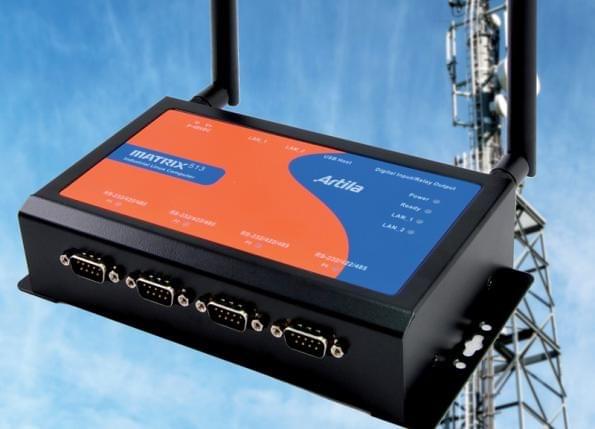

ATMEL 9G45, Linux-ready ARM Industrial Box Computer with 2 x LANs, 4 x RS-232 / 422 / 485 TTYs, 2 x USB Hosts, 2 x miniPCIe Sockets, 1 x Relay and 2 x Iso. D/Is


  •  GNU C/C++ tool chain for Linux and Windows

  • Power input: 9~48VDC, 500mA@12V

  • One half-size miniPCIe socket inside

  • One full-size miniPCIe socket inside

  • USB 2.0 Hosts: 2, up to 480Mbps

  • Serial Ports: 4 x RS-232 / 422 / 485

  • Ethernet: 2 x 10/100Mbps

  • microSD socket: 1 x inside, up to 32GB max.

  • SDRAM: 128MB DDR2

  • Flash: 256MB, NAND type

  • CPU: ATMEL AT91SAM9G45, 400MHz

  • Linux 2.6.38 computing platform with file system
