Description

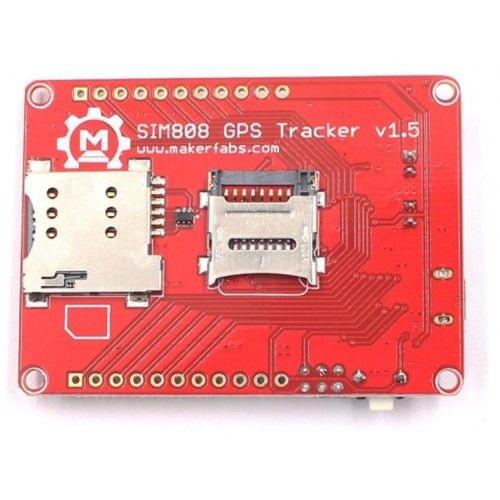

SIM808 GPS Tracker is an IOT (Internet of things) Solution based on the ATmega328 and GPRS/GSM GPS module SIM808. It intergrate a micro Controller Atmega 328, GRRS/GSM module SIM808, which is the
upgrade version of SIM900, power management and storage, to make the SIM808 GPS Tracker ready for
real project for IOT projects such as smart-home, outdoor monitoring, shared bicycle, etc.
The SIM808 GPS Tracker based on the Arduino, users can program it with Arduino IDE, which is very easy
especially suit for the none-programmers. There are also guide for users to learn how to create the first
IOT project with this board, with which the starters can learn the hardware and programming skill quickly.

Features Of Maduino SIM808 GPS Tracker

• BAT Input Voltage: 3.4-4.2V

• ATmega328: 8MHz, 32KB flash, 2KB SRAM

• Micro SIM connector

• Integrated Power Control System

• AT command interface with "auto baud" detection

• Quad-band: 850/900/1800/1900Mz

• Send and receive GPRS data (TCP/IP, HTTP, etc.)

• GPS L1 C/A code

• 22 tracking /66 acquisition channels

• Tracking: -165 dBm

• Cold starts: -148 dBm

• Time-To-First-Fix：Cold starts-32s (typ.), Hot starts-1s (typ.)，Warm starts-5s (typ.)

• Accuracy: approx. 2.5 meters

• Interface: I2C/SPI/UART/18*GPIO

• Arduino compatible

• Working Temperature: -40 – 85℃

• Default baud rate: 115200
