Description:

Maduino GPRS A6 is a one-stop solution for IoT (Internet of Things) projects, it integrates a micro Controller Atmega 328, GRRS/GSM module A6, on-board power management and storage, to make the Maduino GPRS A6 ready for a real project for IoT projects such as smart-home, outdoor monitoring, shared bicycle, etc. The GRPS/GSM module A6 supports quad-band 850/900/1800/1900MHz, which covers any GSM network, after inserting a SIM card, then you will able to use the SMS/GPRS service of Cellular connectivity.

The Maduino GPRS A6 based on the Arduino, users can program it with Arduino IDE, which is very easy especially suit for the none-programmers. There are also detailed guides for users to learn how to create the first IoT project with the Maduino GPRS A6 board, with which the starters can learn the hardware and programming skills quickly.

Features:

• Powered by lithium battery 3.4-4.2V or USB
• ATmega328: 8MHz, 32KB flash, 2KB SRAM
• Integrated Power Control System
• Quad-band: 850/900/1800/1900Mz
• Interface: I2C/SPI/UART/18*GPIO
• Arduino Compatible
• Working Temperature: -20 – 85℃
• Default baud rate: 115200
• Size: 40mm*55mm

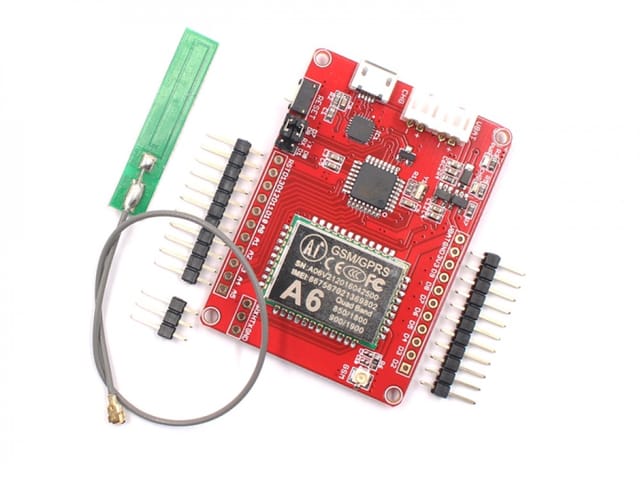

Package List:

• 1 x Maduino GPRS A6
• 1 x GPRS GSM Antenna

Documents:

• Schematic
• User Manual
• Arduino Demo Code
• Wiki
