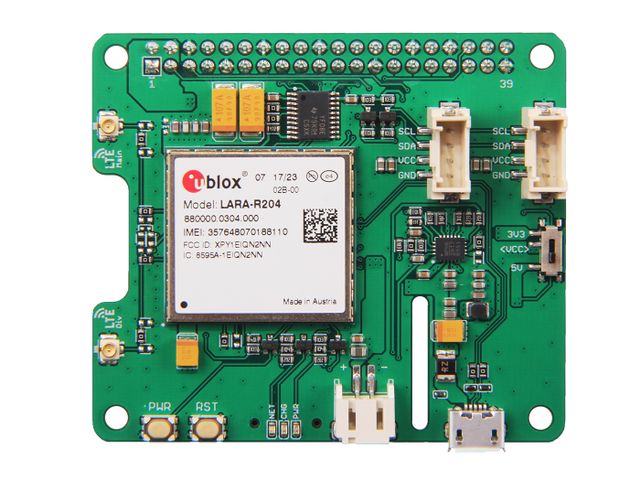

Seeed’s LTE CAT.1 Pi HAT is an open source cellular extension modem for Raspberry Pi, based on u-blox LARA-R2xx series. It compatible with Raspberry Pi 1 Model B+ and later versions.
LTE CAT.1 Pi HAT is designed for LTE Category 1 networks and with 2G fallback(EU version only). Embedding common protocols, like TCP/UDP, HTTP.
LTE CAT.1 Pi HAT support UART and USB interfaces. By UART, Raspberry Pi communicate with LTE CAT.1 Pi HAT via AT command without any special driver. It’s well suited for building prototyping rapidly.
Features
Compatible with Raspberry Pi 1 Model B+ and later versions
LTE CAT.1 and support 2G fallback(EU version only)
UART and USB interface for communicate
Support Grove I2C and Digital connector
Protocols on cellular module
Embed TCP/UDP stack
Embed HTTP, FTP, SSL
Dual stack IPV4/IPV6
3GPP TS 27.007 [8], TS 27.005 [9] standard AT command
Applications
IoT gateway
Other scenario need cellular networks
Dimensions | 65mm x 56mm x 18.5mm |
Weight | G.W 53.9g N.W 23.4g |
Battery | Exclude |
LTE Cat 1 Pi HAT (USA - VZW) | 1 |
LTE Antenna | 2 |
Seeed’s LTE CAT.1 Pi HAT is an open source cellular extension modem for Raspberry Pi, based on u-blox LARA-R2xx series. It compatible with Raspberry Pi 1 Model B+ and later versions.
LTE CAT.1 Pi HAT is designed for LTE Category 1 networks and with 2G fallback(EU version only). Embedding common protocols, like TCP/UDP, HTTP.
LTE CAT.1 Pi HAT support UART and USB interfaces. By UART, Raspberry Pi communicate with LTE CAT.1 Pi HAT via AT command without any special driver. It’s well suited for building prototyping rapidly.
Features
Compatible with Raspberry Pi 1 Model B+ and later versions
LTE CAT.1 and support 2G fallback(EU version only)
UART and USB interface for communicate
Support Grove I2C and Digital connector
Protocols on cellular module
Embed TCP/UDP stack
Embed HTTP, FTP, SSL
Dual stack IPV4/IPV6
3GPP TS 27.007 [8], TS 27.005 [9] standard AT command
Applications
IoT gateway
Other scenario need cellular networks
Dimensions | 65mm x 56mm x 18.5mm |
Weight | G.W 53.9g N.W 23.4g |
Battery | Exclude |
LTE Cat 1 Pi HAT (USA - VZW) | 1 |
LTE Antenna | 2 |
