LT1764AEQ#TRPBF-ANALOG DEVICES-LDO Voltage Regulator, Adjustable, 2.7 V to 20 V in, 0.34 V / 3 A out, TO-263-5.LT®1764A is a low noise/dropout regulator optimized for fast transient response. Quiescent current is well controlled, it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1764A has very low output voltage noise which makes the device ideal for sensitive RF supply applications. Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. Typical applications are 3.3V to 2.5V logic power supply, post regulator for switching supplies.

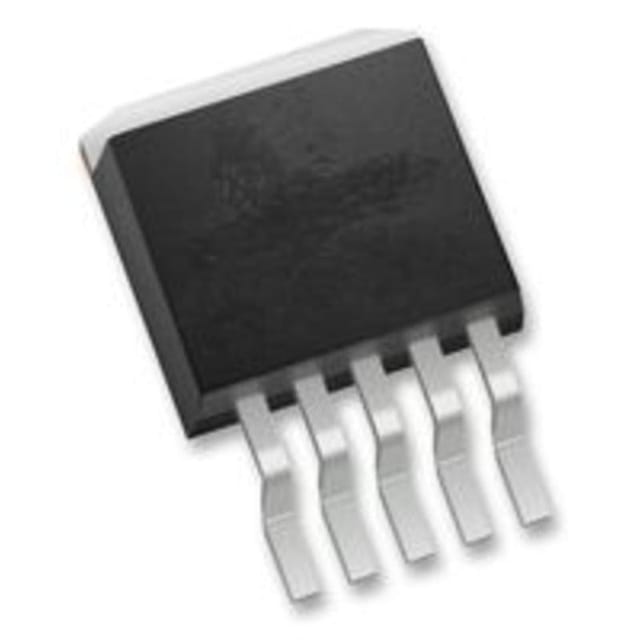

Note: Images for reference only.

Specifications:

Output Type:: Adjustable
Input Voltage Min:: 2.7V
Input Voltage Max:: 20V
No. of Outputs:: 1Outputs
Output Voltage – Nom:: –
Output Voltage Min:: 1.21V
Output Voltage Max:: 20V
Polarity:: Positive Output
Output Current Max:: 3A
Max Output Current:: 3A
Dropout Voltage Typ @ Current:: 340mV
Dropout Voltage – Typ @ Current:: 340mV
IC Mounting:: Surface Mount
IC Case / Package:: TO-263 (D2PAK)
No. of Pins:: 5Pins
Operating Temperature Min:: -40°C
Operating Temperature Max:: 125°C
Product Range:: Adj 3A LDO Voltage Regulators
MSL:: MSL 1 – Unlimited

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x LT1764AEQ#TRPBF-ANALOG DEVICES-LDO Voltage Regulator, Adjustable, 2.7 V to 20 V in, 0.34 V / 3 A out, TO-263-5
