LM385Z-2.5G-ONSEMI-Voltage Reference, Micropower, Shunt – Fixed, LM385 Series, 2.5V, TO-226AA-3.The LM385 series micropower band-gap Voltage Regulator Diode designed to operate over a wide current range of 10μA to 20mA, this device feature exceptionally low dynamic impedance, low noise and stable operation over time and temperature. Tight voltage tolerances are achieved by on-chip trimming. The large dynamic operating range enables these devices to be used in applications with widely varying supplies with excellent regulation. Extremely low operating current make this device ideal for micropower circuitry like portable instrumentation, regulator and other analog circuitry where extended battery life is required.

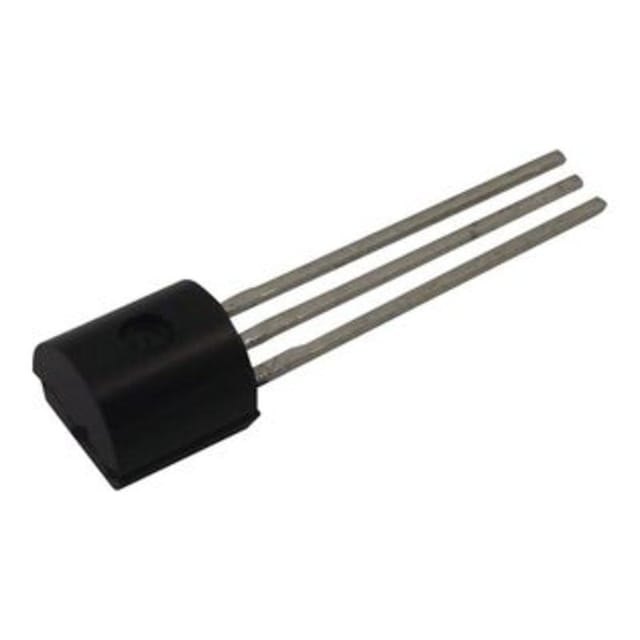

Note: Images for reference only.

Specifications:

IC Case / Package: TO-226AA
Reference Voltage Max: 2.538V
No. of Pins: 3Pins
Voltage Reference Type: Shunt – Fixed
Temperature Coefficient:: 80ppm/C
Initial Accuracy: 0.03

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x LM385Z-2.5G-ONSEMI-Voltage Reference, Micropower, Shunt – Fixed, LM385 Series, 2.5V, TO-226AA-3
