6728c3c1428a99002bc5f758 LM358DR SOIC-8 High Gain Operational Amplifier-5Pcs. https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6728c3c2428a99002bc5f75b/lm358dr-5.jpg
Note: This Product is available in two different variants of IC  (LM358DR and OPA1612) with the same working we will ship it randomly.
Note :  The color  of  IC may be different
The LM358DR is a dual operational amplifier in an 8 pin SOIC package. It consists of two independent, high gain frequency compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.

Features:

  1. Single supply voltage from 3V to 32V and dual supply range from ±1.5V to ±16V
  2. Slew rate at unity gain is 0.3 V/µs
  3. Wide unity gain bandwidth of 0.7MHz
  4. Low drain supply current is 0.7mA independent of supply voltage
  5. Input offset voltage of 3mV
  6. Input offset current of 2nA
  7. Input bias current of -20nA
  8. Differential input voltage range equal to the maximum rated supply voltage of 32V
  9. Common mode rejection ratio (CMRR) of 80dB
  10. Operating temperature range from 0°C to 70°C
  11. Applications: Signal Processing, Sensing & Instrumentation, Consumer Electronics, Portable Devices, Motor Drive & Control

Note: Supply voltages larger than 32V for single supply and outside the range of ±16V for dual supply can permanently damage the device.

Warning: This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage.

Package Includes:

5 x LM358DR SOIC-8 High Gain Operational Amplifier

 TT-RB-161970
in stock INR 56
1 1

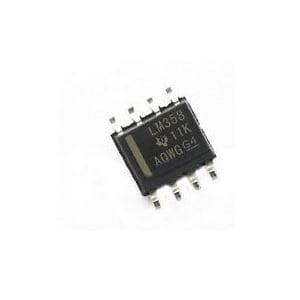

LM358DR SOIC-8 High Gain Operational Amplifier-5Pcs.

Sku: TT-RB-161970
Be the first to review this product
₹56
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

Note: This Product is available in two different variants of IC  (LM358DR and OPA1612) with the same working we will ship it randomly.
Note :  The color  of  IC may be different
The LM358DR is a dual operational amplifier in an 8 pin SOIC package. It consists of two independent, high gain frequency compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.

Features:

  1. Single supply voltage from 3V to 32V and dual supply range from ±1.5V to ±16V
  2. Slew rate at unity gain is 0.3 V/µs
  3. Wide unity gain bandwidth of 0.7MHz
  4. Low drain supply current is 0.7mA independent of supply voltage
  5. Input offset voltage of 3mV
  6. Input offset current of 2nA
  7. Input bias current of -20nA
  8. Differential input voltage range equal to the maximum rated supply voltage of 32V
  9. Common mode rejection ratio (CMRR) of 80dB
  10. Operating temperature range from 0°C to 70°C
  11. Applications: Signal Processing, Sensing & Instrumentation, Consumer Electronics, Portable Devices, Motor Drive & Control

Note: Supply voltages larger than 32V for single supply and outside the range of ±16V for dual supply can permanently damage the device.

Warning: This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage.

Package Includes:

5 x LM358DR SOIC-8 High Gain Operational Amplifier
