This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. It employs internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents

Applications:

1. Power Management

Features:

1. Thermal overload protection
2. Short circuit protection
3. Output transition SOA protection
4. 2 % output voltage tolerance

Package Includes:

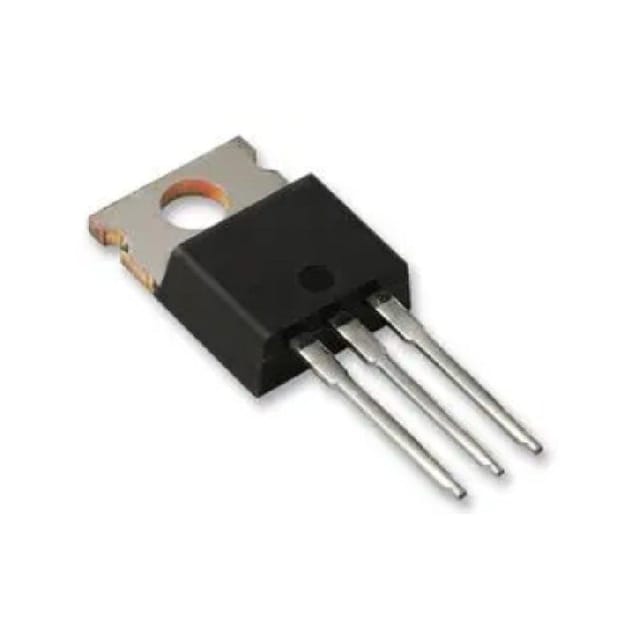

1 x L7805CV STMicroelectronics Linear Voltage Regulator, 7805, Fixed, Positive, 10V To 35V In, 5V And 1.5A Out, TO-220-3
