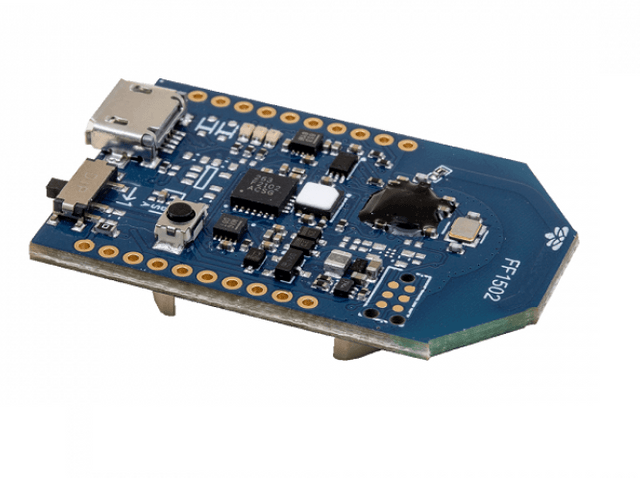

L-Tek FF1502 Sensor BLE
SHOP FOR
L-Tek FF1502 Sensor BLE

Description of product

Description

L-Tek FF1502 is Bluetooth based sensor tag (FlyTag), a XBee pin out compatible building block for IoT.

With build-in sensors you can make diferent application for your home or make proof of concept to your idea in IoT. We provide support for easy implementation FF1502 module to your web application. You can also add diferent blocks to the module and control it with I2C.

A powerfull Nordic Semiconductors nRF51822 Bluetooth MCU, can be powered with CR2032 battery, over the I/O pins or over USBmini connector.

Features
Plug & Play
XBee Pin Out Compatible
Integrated Sensors
ARM® Cortex®-M0
I2C Connection & extensions
LED Indication (red, green, yellow)
Reprogrammable
Over-the-air-programming (OTA)
Battery Powered
User Button
ON/OFF switch

Applications
Home/Personal Network
Wireless Communications
Data Communications
Small Data Acquisition
Distributed System

Specifications
Nordic nRF51822 (Multiprotocol Bluetooth 4.0 low energy/2.4 GHz RF)

ARM Cortex -M0 32 bit processor

275 µA/MHz running flash memory
150µA/MHz running from RAM
Serial Wire Debug (SWD)
Memory
256 kB or 128 kB embedded flash program memory
16 kB RAM
Sensors
temperature & humidity sensor Si7020-A20
light sensor BH1750
accelerometer MMA8653FC
gyroscope FXAS21002C
magnetometer MAG3110
Battery
CR2032 (batteries included)
