The micro switch is a contact mechanism with a small contact spacing and a quick action mechanism, with the specified stroke and the specified force for the switch action, covered with a shell, and a switch with a driving rod outside, because the contact spacing of the switch is relatively small, so it is called a micro switch, also known as a sensitive switch.

It is commonly used in computer mice, car mice, automotive electronic products, communication equipment, military products, testing instruments, gas water heaters, gas stoves, small household appliances, microwave ovens, rice cookers, float equipment, medical equipment, building automation, power tools and general electrical and radio equipment, 24-hour timers, etc

Specifications:

1. Rating:  1A  125VAC
2. Operating temperature: -25℃~+75℃
3. Contact resistance: 50mΩ max
4. authentication: CE, SGS
5. Withstand voltage: 600VAC 1Minute
6. Insulation resistance: 100MΩ min (500VDC)
7. Electrical life: ≥ 10,000 Cycles
8. Mechanical life: ≥ 10,0000 0Cycles

Package Includes:

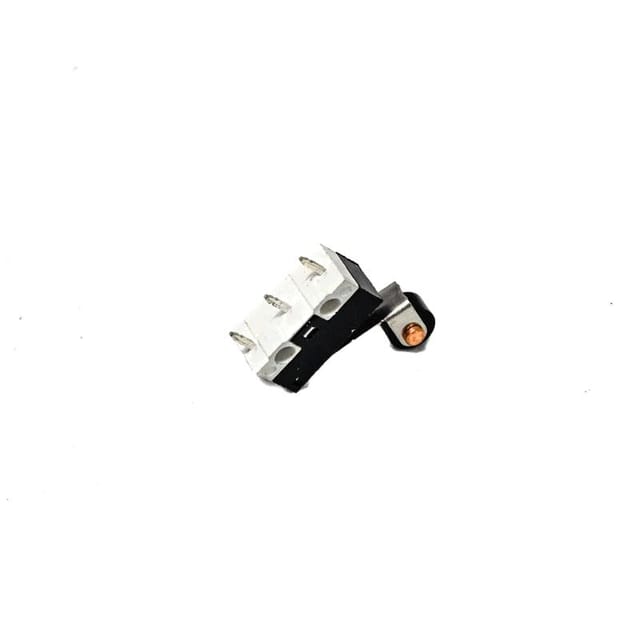

1 x KW10-Z4P075-SPDT Roller Lever Micro Switch-1A 125VAC(0.75N)
