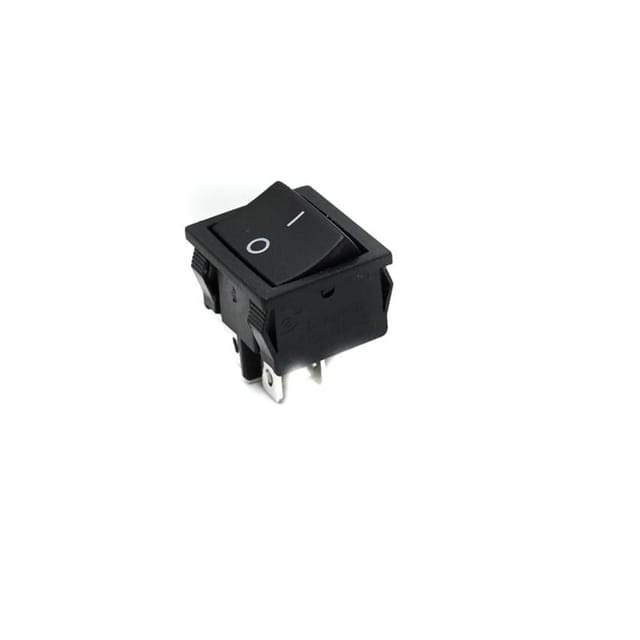

The KCD1-6-201 Power Pole Rocker Switch is a high-quality switch that is designed for use in a wide range of applications. It features a DPST (Double Pole, Single Throw) contact configuration and an ON-OFF switch operation. The switch has a rating of 10A 125VAC/6A 250VAC, making it suitable for use in a variety of applications.The switch features a nylon 66 housing and button, along with brass terminals that are silver plated for increased durability and reliability. It has a contact resistance of 50mOhm max and an insulation resistance of 100mOhm min, making it highly efficient and reliable.The KCD1-6-201 Power Pole Rocker Switch has a black button, with white and red color options also available. It has a standard black housing color, but a white housing color option is also available. The switch has a wide operating temperature range of -25C~+85C, and it has a mechanical life of >= 100,000 cycles and an electrical life of >= 10,000 cycles. The switch also has a dielectric strength of 1500VAC for one minute.

Specifications:

1. Housing: Nylon 66
2. Button: Nylon 66
3. Terminal Brass with sliver plated
4. Button color: Black, white, and red button
5. Rating: 10A 125VAC/6A 250VAC
6. Housing color: Standard black
7. Contact Configuration: DPST
8. Switch Operation: (ON-OFF)
9. Contact Resistance: 50 mΩ max
10. Operating Temperature: -25℃~+85℃
11. Insulation Resistance: 100mΩ min (500VDC)
12. Electrical Life: ≥ 10,000 Cycles
13. Dielectric strength: 1500VAC 1 minute
14. Mechanical Life: ≥ 100,000 Cycles
15. Certification: CE, CQC, SGS
16. OEM or ODM: Available

Package Includes:

1 x KCD1-6-201-Power Pole Rocker Switch DPST-4Pin(ON-OFF)
