Description
IrThermo Click 5V features MLX90614ESF-AAA single zone Infrared Thermometer module capable of non-contact temperature measurements. It is calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to +380°C for the object temperature (-20 to 120°C in PWM mode). IrThermo Click™ communicates with target board microcontroller via mikroBUS™ I2C lines (SCL, SDA) or PWM line. These features make this board ideal for automotive, industrial temperature control, movement detection, air conditioning control and more. The board is designed to use 5V power supply only.
Specification
| Type | Temperature |
| Applications | Board is ideal for automotive, industrial temperature control, movement detection, air conditioning control and more |
| On-board modules | MLX90614ESF-AAA single zone Infrared Thermometer |
| Key Features | 17-bit ADC powerful DSP unit and 10-bit PWM. |
| Key Benefits | It is configured to measure temperature in range of -40 to 85 °C with an output resolution of 0.14 °C |
| Interface | I2C,PWM |
| Input Voltage | 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
- Home
- IrThermo click 5V

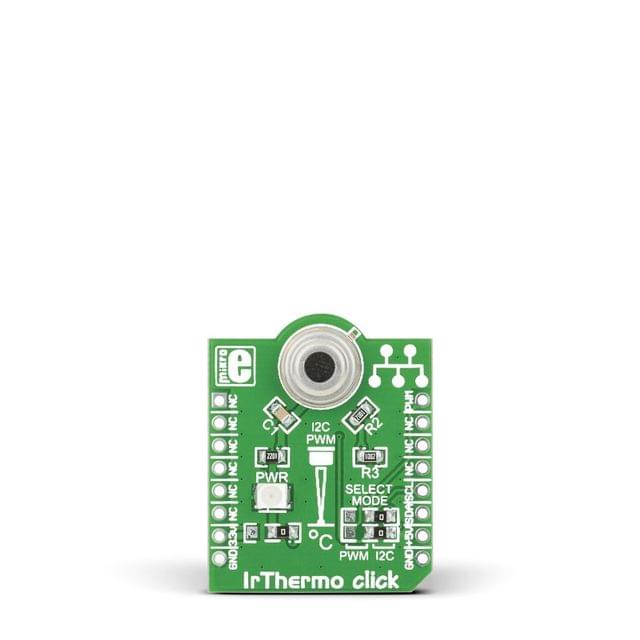

IrThermo click 5V
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a98f4fa74a3a1bde37981e3/images/5a98f4fa74a3a1bde37981e4/5a98f42e74a3a1bde3797fd6/5a98f42e74a3a1bde3797fd6.jpg
Description of product
Description
IrThermo Click 5V features MLX90614ESF-AAA single zone Infrared Thermometer module capable of non-contact temperature measurements. It is calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to +380°C for the object temperature (-20 to 120°C in PWM mode). IrThermo Click™ communicates with target board microcontroller via mikroBUS™ I2C lines (SCL, SDA) or PWM line. These features make this board ideal for automotive, industrial temperature control, movement detection, air conditioning control and more. The board is designed to use 5V power supply only.
Specification
| Type | Temperature |
| Applications | Board is ideal for automotive, industrial temperature control, movement detection, air conditioning control and more |
| On-board modules | MLX90614ESF-AAA single zone Infrared Thermometer |
| Key Features | 17-bit ADC powerful DSP unit and 10-bit PWM. |
| Key Benefits | It is configured to measure temperature in range of -40 to 85 °C with an output resolution of 0.14 °C |
| Interface | I2C,PWM |
| Input Voltage | 5V |
| Compatibility | mikroBUS |
| Click board size | S (28.6 x 25.4 mm) |
