Description

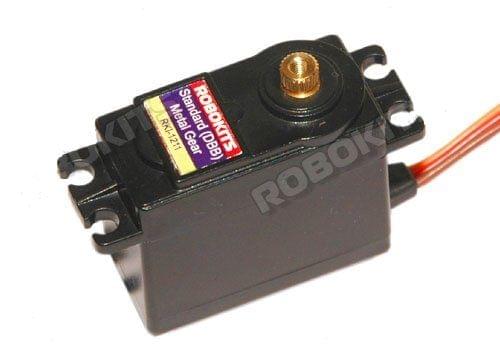

High Torque Standard Servo Motor with Dual Ball Bearing and Metal Gears. Provides 14kg/cm at 4.8V and 16kg/cm at 6V. Replacement for HS-645MG. Compatible with RKI-2323, RKI-2322, RKI-2321,RKI-2320, RKI-2319, RKI-2318, RKI-2317,RKI-2316.
Features
- Required Pulse: 3-5 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8-6.0 Volts
- Operating Temperature Range: -10 to +60 Degree C
- Operating Speed (4.8V): 0.18sec/60 degrees at no load
- Operating Speed (6.0V): 0.14sec/60 degrees at no load
- Stall Torque (4.8V): 14kg/cm
- Stall Torque (6.0V): 16kg/cm
- 360 Modifiable: Yes
- Potentiometer Drive: Indirect Drive
- Bearing Type: Double Ball Bearing
- Gear Type: All Metal Gears
- Connector Wire Length: 12"
- Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
- Weight: 48gm
- Home
- HIGH TORQUE METAL GEAR STANDARD DIGITAL SERVO
HIGH TORQUE METAL GEAR STANDARD DIGITAL SERVO
SIZE GUIDE
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e75db9f2c5448761b6ba6c5/images/5e75db9f2c5448761b6ba6c6/5e75db87719bd6371369e94a/5e75db87719bd6371369e94a.jpg
Description of product
Description
High Torque Standard Servo Motor with Dual Ball Bearing and Metal Gears. Provides 14kg/cm at 4.8V and 16kg/cm at 6V. Replacement for HS-645MG. Compatible with RKI-2323, RKI-2322, RKI-2321,RKI-2320, RKI-2319, RKI-2318, RKI-2317,RKI-2316.
Features
- Required Pulse: 3-5 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8-6.0 Volts
- Operating Temperature Range: -10 to +60 Degree C
- Operating Speed (4.8V): 0.18sec/60 degrees at no load
- Operating Speed (6.0V): 0.14sec/60 degrees at no load
- Stall Torque (4.8V): 14kg/cm
- Stall Torque (6.0V): 16kg/cm
- 360 Modifiable: Yes
- Potentiometer Drive: Indirect Drive
- Bearing Type: Double Ball Bearing
- Gear Type: All Metal Gears
- Connector Wire Length: 12"
- Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
- Weight: 48gm
