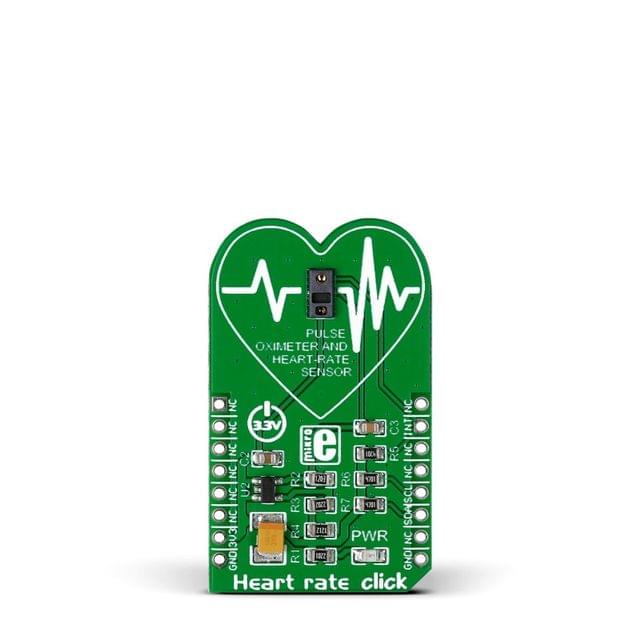

5aba2461367893306ece4817 Heart rate click https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aba2461367893306ece4817/images/5aba2461367893306ece4818/5aba229f1b659bda7531436e/webp/5aba229f1b659bda7531436e.jpg

Description

Heart Rate click carries Maxim’s MAX30100 integrated pulse oximetry and heart-rate sensor. It’s an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector. This particular LED color combination is optimized for reading the data through the tip of one’s finger. The signal is processed by a low-noise analog signal processing unit and communicated to the target MCU through the mikroBUS I2C interface. Developers of end-user applications should note that the readings can be negatively impacted by excess motion and changes in temperature. Also, too much pressure can constrict capillary blood flow and therefore diminish the reliability of the data. A programmable INT pin is also available. Uses 3.3V power supply.


Specification

Type Biomedical
Applications Developing algorithms for pulse oximetry and heart rate readings through the tip of a finger
On-board modules Maxim’s MAX30100 integrated pulse oximetry and heart-rate sensor
Key Features Optical sensor: IR and red LED combined with photodetector. Measures absorbance of pulsing blood
Key Benefits Motion artefact resillence. Ambient light cancellation
Interface GPIO,I2C
Input Voltage 3.3V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)



    TT-MK-MIKROE-2000
    in stock INR 1928.5
