5b28a7a4ce8fd0d5d45bbdca GSM/GPRS/GPS Shield (B) https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b28a7a4ce8fd0d5d45bbdca/images/5dc10f83da1e8b26f219efb3/5dc10f6bd10d9227c313103e/webp/5dc10f6bd10d9227c313103e.jpg
Description

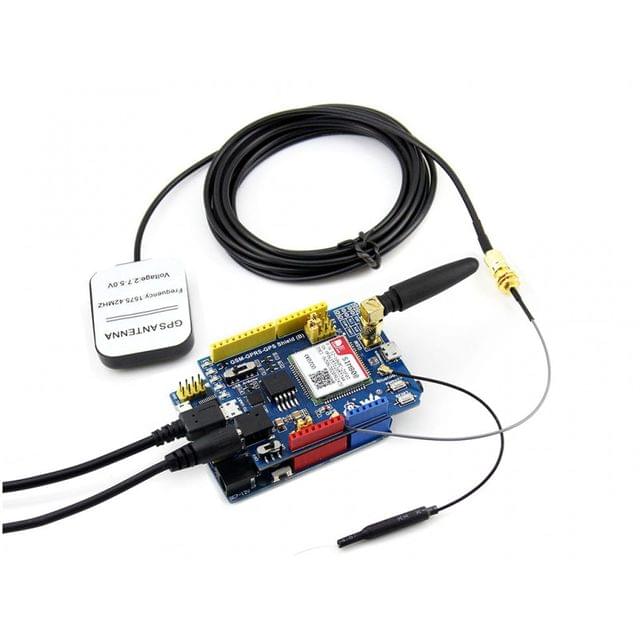

GSM/GPRS/GPS Shield (B), Arduino Shield Based on SIM808, Comes with US plug power adapter.GSM/GPRS/GPS Shield (B) is an Arduino shield based on the Quad-band GSM/GPRS/GPS module SIM808.

Features

  • Arduino connectivity, compatible with UNO, Leonardo, NUCLEO, XNUCLEO
  • Onboard USB TO UART converter CP2102 for UART debugging
  • 5 x LEDs for indicating the module working status
  • Onboard voltage level converter, supports both 3.3V and 5V systems
  • SIM card slot for 1.8V/3V SIM card
  • Baudrate auto detection (1200bps ~115200bps)
  • Bluetooth 3.0, supports data transferring through Bluetooth
  • RTC with power supply interface
  • Firmware upgradable via USB
  • Control via AT commands (3GPP TS 27.007,27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: GSM 11.14 Release 99
  • Operating voltage: 6 ~ 12V
  • Operation temperature: -40 °C ~ +85 °C
  • Storage temperature: -45 °C ~ +90 °C

GSM/GPRS

  • Band
    • GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
    • Quad-band auto search
    • Compliant to GSM phase 2/2+
  • Emitting power
    • Class 4 (2W @ GSM 850/EGSM 900 MHz)
    • Class 1 (1W @ DCS 1800/PCS 1900 MHz)
  • GPRS connectivity
    • GPRS multi-slot class 12 (default)
    • GPRS multi-slot class 1~12 (configurable)
  • GPRS data feature
    • Downlink speed: max 85.6kbps
    • Uplink speed: max 85.6kbps
    • Coding schemes: CS-1\CS-2\CS-3\CS-4
    • Supports PAP (Password Authentication Protocol) for PPP connection
    • Embedded TCP/IP protocol
    • Supports PBCCH
    • Supports CSD transmission speed: 2.4/4.8/9.6/14.4 kbps
    • Supports USSD
  • SMS
    • Supports: MT/MO/CB/Text/PDU mode
    • SMS storage: SIM card
  • Audio
    • Voice encode/decode mode: Half Rate\Full Rate\Enhanced Full Rate\Adaptive muti rate
    • Supports echo cancellation
    • Supports noise reduction

GPS

  • Receiver type
    • 22 tracking channels
    • 66 acquisition channels
    • GPS L1 C/A code
  • Sensitivity
    • Tracking: -165 dBm
    • Cold starts : -148 dBm
  • Time-To-First-Fix
    • Cold starts : 30s (typ.)
    • Hot starts : < 1s
    • Warm starts: 28s
  • Accuracy
    • Horizontal position : <2.5m CEP

TT-WS-11427
in stock INR 5280
