Grove - Temperature&Humidity Sensor (HDC1000)

Description of product

Description

This product is retired, please consider Grove - Temperature and Humidity Sensor Pro(AM2302)as your alternative choice.

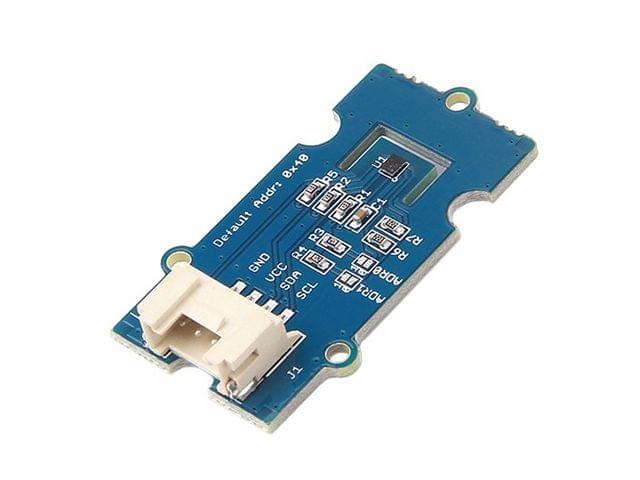

Grove - Temperature&Humidity Sensor (HDC1000) utilizes a HDC1000 sensor, which was designed by Texas Instruments. It is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The device measures humidity based on a novel capacitive sensor. The humidity and temperature sensors are factory calibrated. The innovative WLCSP (Wafer Level Chip Scale Package) simplifies board design with the use of an ultra-compact package. The sensing element of the HDC1000 is placed on the bottom part of the device, which makes the HDC1000 more robust against dirt, dust, and other environmental contaminants. The HDC1000 is functional within the full –40°C to +125°C temperature range, and 0-100% RH range.

Features

  • Grove connector compatible

  • IIC Interface

  • Low Power

  • Wide operating voltage range

  • I2C Serial Bus Address Configuration

Specification

  • Supple Voltage: 3~5Vdc;

  • Working Current: 0.12~90uA;

  • Relative humidity accuracy: ±3%RH;

  • Relative humidity operating range: 0~100%RH;

  • Temperature accuracy: ±0.2℃;

  • Temperature range: -40~125℃;

  • Operating temperature: -20~85℃

  • Dimension: 40×20mm.

Part List

  • 1x PCBA -Grove - Temperature&Humidity Sensor(HDC1000);

  • 1x 26AWG Grove Cable; SA206120099A.


    Technical Details

    WeightG.W 7g
    BatteryExclude

    Part List

    Grove - Temperature&Humidity Sensor (HDC1000)1
    26AWG Grove Cable; SA206120099A.1
