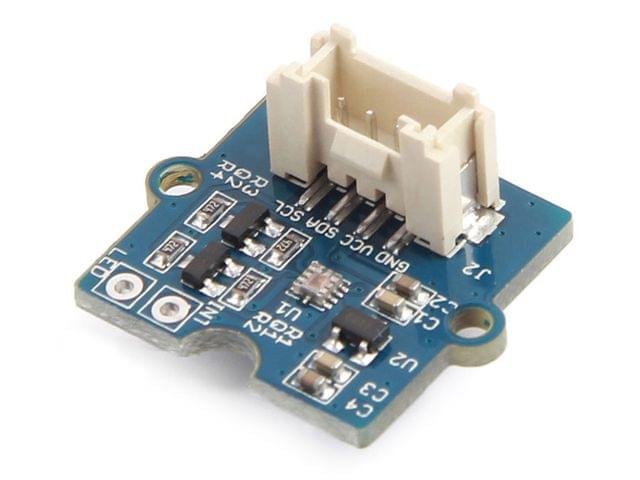

Grove - Sunlight Sensor

Description of product


Summer is coming, want to make a UV detector to know the UV index when you are under the sun? Grove - Sunlight Sensor is recommend here.

Grove - Sunlight Sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.

This device is based on SI1145, a new sensor from SiLabs. The Si1145 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.

Grove - Sunlight Sensor include an on-bard Grove connector, which help you to connect it your Arduino easily. You can use this device for making some project which need to detect the light, such as a simple UV detector.


  • Digital light sensor

  • Wide spectrum detection range

  • Programmable configuration

  • 3.3/5V Supply

  • Detect sunlight directly

  • Grove compatible

  • I2C Interface(7-bit)

Technical Details

Dimensions 140mm x 85mm x 11mm
Weight G.W 6g
Battery Exclude
Operating Voltage 3.0-5.5V
Working current 3.5mA
Wave length 280-950nm
Operating Temperature -45-85oC

Part List

Grove - Sunlight Sensor 1
Grove Cable 1
