59f6efe66661b53a13af88a9 Grove - Sound Sensor https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/59f6efe66661b53a13af88a9/images/59f6efe66661b53a13af88aa/59f6ead56661b53a13af8632/59f6ead56661b53a13af8632.jpg

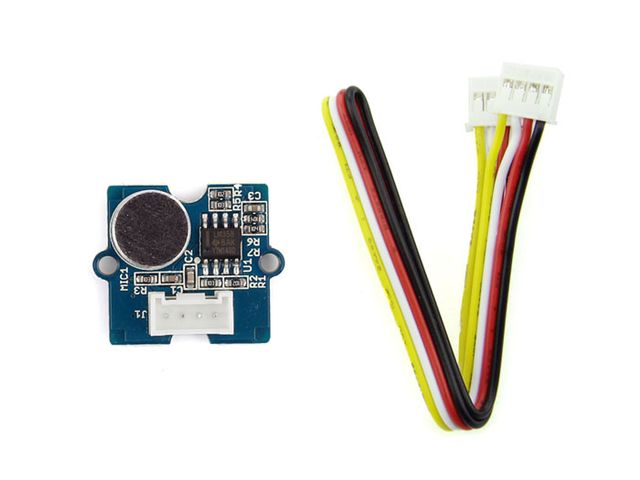

The Sound sensor module is a simple microphone. Based on the power amplifier LM386 and the electret microphone, it can be used to detect the sound strength of the environment. The value of output can be adjusted by the potentiometer.



Features

  • Grove compatible interface

  • Wide supply voltage range: 4V-12V

  • Low quiescent current drain: 4mA

  • 2.0cm x 2.0cm twig module

  • Minimum external parts

Applications Ideas

  • Simple microphone

  • Sound detection

 For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.



Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

Technical Details

Dimensions24mm x 20mm x 9.8mm
WeightG.W 7g
BatteryExclude
Operating Voltage Range3.3/5 V
Operating Current(Vcc=5V)4~5 mA
Voltage Gain(V=6V, f=1kHz)26 dB
Microphone sensitivity(1kHz)52-48 dB
Microphone Impedance2.2k Ohm
Microphone Frequency16-20 kHz
Microphone S/N Radio54 dB

Part List

Grove - Sound Sensor1
TT-SS-15
in stockINR 311.6498
SEEEDSTUDIO
1 1
Grove - Sound Sensor

Grove - Sound Sensor

Sku: TT-SS-15
₹311.65

1 item left in Stock

Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

The Sound sensor module is a simple microphone. Based on the power amplifier LM386 and the electret microphone, it can be used to detect the sound strength of the environment. The value of output can be adjusted by the potentiometer.



Features

  • Grove compatible interface

  • Wide supply voltage range: 4V-12V

  • Low quiescent current drain: 4mA

  • 2.0cm x 2.0cm twig module

  • Minimum external parts

Applications Ideas

  • Simple microphone

  • Sound detection

 For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.



Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

Technical Details

Dimensions24mm x 20mm x 9.8mm
WeightG.W 7g
BatteryExclude
Operating Voltage Range3.3/5 V
Operating Current(Vcc=5V)4~5 mA
Voltage Gain(V=6V, f=1kHz)26 dB
Microphone sensitivity(1kHz)52-48 dB
Microphone Impedance2.2k Ohm
Microphone Frequency16-20 kHz
Microphone S/N Radio54 dB

Part List

Grove - Sound Sensor1
