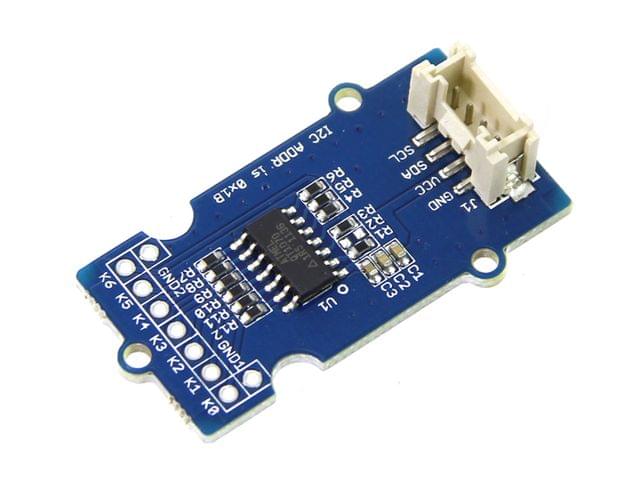

5b163959b58c40dfa2b9651b Grove-Q Touch Sensor https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b163959b58c40dfa2b9651b/images/5b163959b58c40dfa2b9651c/5b1638f298b615df9cceafc3/webp/5b1638f298b615df9cceafc3.jpg

Description

The Q Touch Sensor is a high sensitivity and high noise immunity touch input device.It is based on Atmel AT42QT1070. The AT42QT1070 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1070 uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.

Specification

  • Operating Voltage: 3 ~ 5.5V

  • Operating Current @3.3V: 1mA

  • Touch Keys: 7 Keys ; key0 ,key1 ,key2 are on the Grove PCB bottom side

  • Communicating Protocol: I2C

  • I2C Address: 0x1B

Technical Details

Dimensions 140mm x 85mm x 10.8mm
Weight G.W 8g
Battery Exclude

Part List

Grove - Q Touch Sensor 1
TT-SS-101020069
in stock INR 837
SEEEDSTUDIO
1 1
