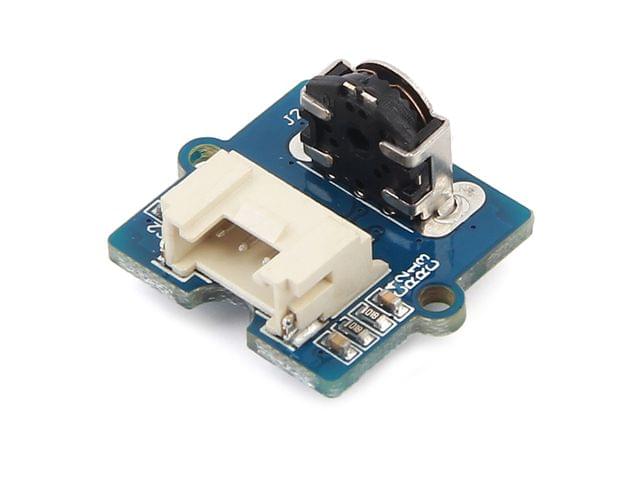

5b1517f1363d043a0d59cae5 Grove - Mouse Encoder https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b1517f1363d043a0d59cae5/images/5b1517f1363d043a0d59cae6/5b151788b5850ea89e19c8f8/webp/5b151788b5850ea89e19c8f8.jpg

Description

Grove - Mouser Encoder is mechanical incremental rotary encoder (A, B channel) with feedback of direction and speed[1]. It features standard Grove interface that will save your lots of work in wiring and programming. Also, it is well adapted to heavy duty and a harsh environment. This product can be applied in toys, robots, and consumer input devices.

Note that the rotating speed is designed to be less 1000 rad/min(radian per minute).

Features

  • Versatile for different environment.

  • Well adapted for heavy duty and harsh environment.

  • With detents and a nice feel.

  • Standard Grove interface for easier programming and wiring.

  • Accurate and reliable.

Specification

Min.TypicalMax.
Operating voltage(V)3.35.5
Operating current(mA)1013
Duty(constant speed)50%
Phase difference(constant speed)π/4
Pulse per circle12

Technical Details

Dimensions130mm x 90mm x 18mm
WeightG.W 8g
BatteryExclude

Part List

Grove - Mouse Encoder1
TT-SS-103020030
in stockINR 661
SEEEDSTUDIO
1 1
