Grove - I2C FM Receiver v1.1

Description of product

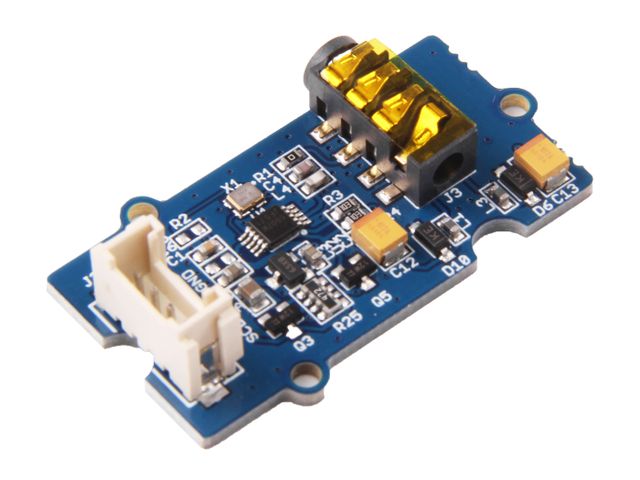

Grove - I2C FM Receiver is a wideband FM receiver module, this module is based on RDA5807M. The RDA5807M series are the latest generation single-chip broadcast FM stereo radio tuner with fully integrated synthesizer. The RDA5807M series have a powerful low-IF digital audio processor. The Grove - I2C FM Receiver has a headset jack, so it can connect to earphones or audio.


• Grove interface
• Support RDS/RBDS
• Lower power consumption
• Headset interface
• Digital auto gain control

Technical Details

Weight G.W 10.4g
Battery Exclude
Input voltage 3.3v - 5v
Supports worldwide frequency band 50 - 115MHz

Part List

Grove - FM Receiver V1.1 1
Grove cable 1
