Grove - Gas Sensor(MQ9)
Grove - Gas Sensor(MQ9)

Description of product

Description

The Grove - Gas Sensor module is useful for gas leakage detecting(in home and industry). It can detect LPG, i-butane, methane, alcohol, Hydrogen, somke and so on. Measurements can be taken as soon as possible based on its fast response time. Also the sensitivity can be adjusted by the potentiometer.

Each Grove - Gas Sensor Kit consists of one gas sensor base and four detectors, including MQ2,MQ3MQ5 and MQ9. Below is a contrast table of them. You can switch the detector on the base according to specific target gases.

Sysmbol MQ-2 MQ-3 MQ-5 MQ-9
Detect Gas

Combustible Gas, Smoke

Alcohol Vapor LPG, Natural Gas, Town Gas Carbon Monoxide, Coal Gas, Liquefied Gas
Concentration 300-10000ppm 0.04-4mg/L Alcohol 300-10000ppm 10-1000ppmCO;100-10000PPm Gas

Features

  • High sensitivity to Combustible gas in wide range

  • Stable performance, long life, low cost

  • Fast response

  • Wide detection range

  • Simple drive circuit

Note

Hot-swapping the grove may lead to IC burnout, please turn off the power of main board before swapping grove.

Technical Details

Dimensions 40mm x 20mm x 18mm
Weight G.W 9g
Battery Exclude

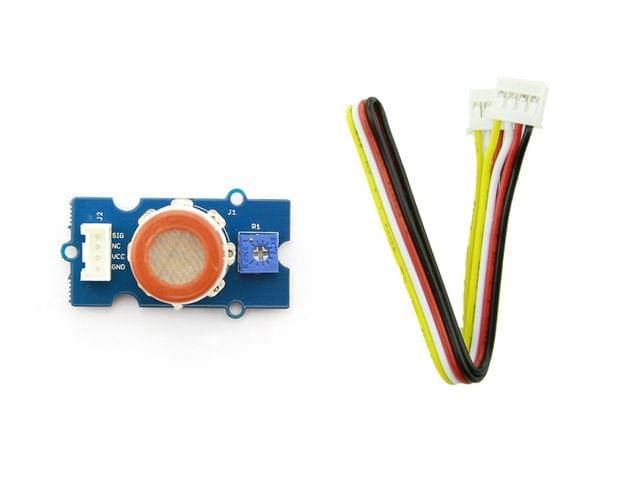

Part List

Grove - Gas Sensor(MQ9) 1
Grove Cable 1
