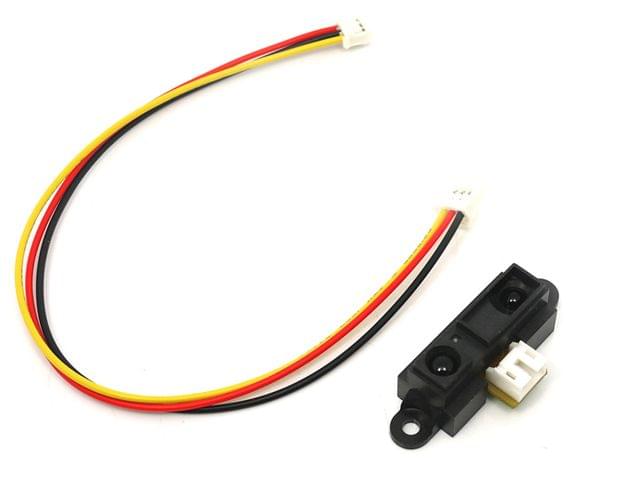

Grove - 80cm Infrared Proximity Sensor

Description of product

Description

The 80cm Infrared Proximity Sensor is a General Purpose Type Distance Measuring Sensors, this sensor takes a continuous distance reading and returns a corresponding analog voltage with a range of 10cm (4") to 80cm (30"). Can be used in TVs,personal computers ,cars and so on.

Features

  • Grove interface compatible

  • Wide supply voltage range: 2.5V-7V

Interface

This sensor is quite small and use a tiny connector called the Japan Solderless Terminal (JST) connector. These connectors have three wires: ground, vcc, and the output. Because the sensor fire continuously and don't need any clocking to initiate a reading, it is easy to interface with any microcontroller. for the seeeduino, the wire convert the 3-wire to 4-wire ,to compatible with the twig interface of Grove .

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Technical Details

Weight G.W 8g
Battery Exclude

Part List

Grove - 80cm Infrared Proximity Sensor 1
Grove Cable 1
