GNSS3 click

Description of product

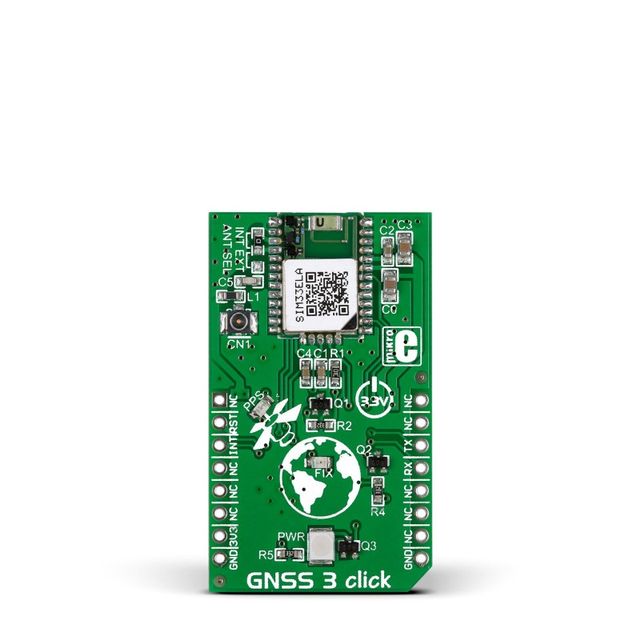

GNSS3 click carries SIMCom’s SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one). GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems. The SIM33ELA module has MTK’s high sensitivity navigation engine. It features EPO™ orbit prediction, AGPS, SBAS ranging (WAAS, EGNOS, GAGAN, MSAS). GNSS3 click communicates with the target MCU through mikroBUS UART pins (RX, TX), with additional functionality provided through RST and INT pins. The board uses a 3.3V power supply.






SPECIFICATION


TypeGPS
ApplicationsNavigation devices based on GPS and GLONASS global positioning systems
On-board modulesSIMCom’s SIM33ELA with integrated antenna
Key FeaturesMTK high sensitivity navigation engine. TTFF: 28 seconds (cold), 26s (warm), less than 1 (hot). Sensitivity: -165 dBm tracking; -160 dBm reacquisition; -146 dBm cold start
Key BenefitsEPO™ orbit prediction. EASY™ self-generated orbit prediction
InterfaceGPIO,UART
Input Voltage3.3V
CompatibilitymikroBUS
Click board sizeM (42.9 x 25.4 mm)
