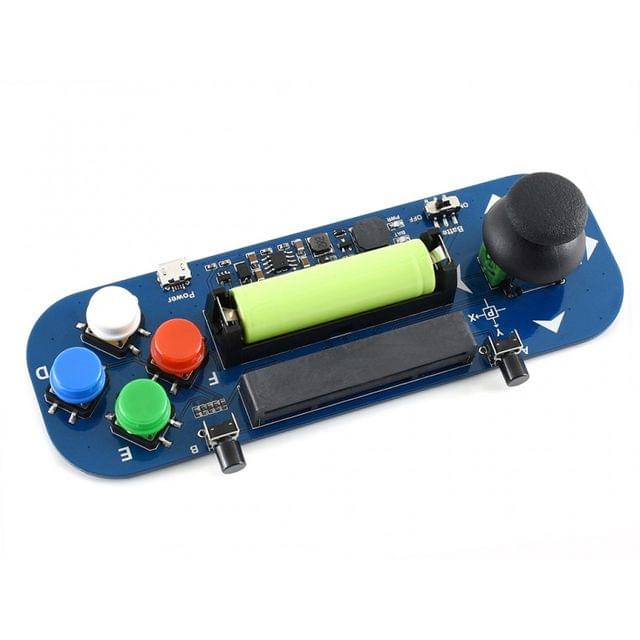

Gamepad module for micro:bit, Joystick and Buttons

Description of product

Overview

This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.

Features

  • micro:bit edge connector, directly pluggable
  • High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
  • Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
  • Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
  • 4x colorful buttons
  • 2x side buttons, related to the A/B buttons of micro:bit, easy to use
  • Buzzer for playing music and game background effect
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

Specifications

  • Operating voltage: 5V
  • Battery type: 14500 Li-ion
  • Dimension: 150mm x 50mm
